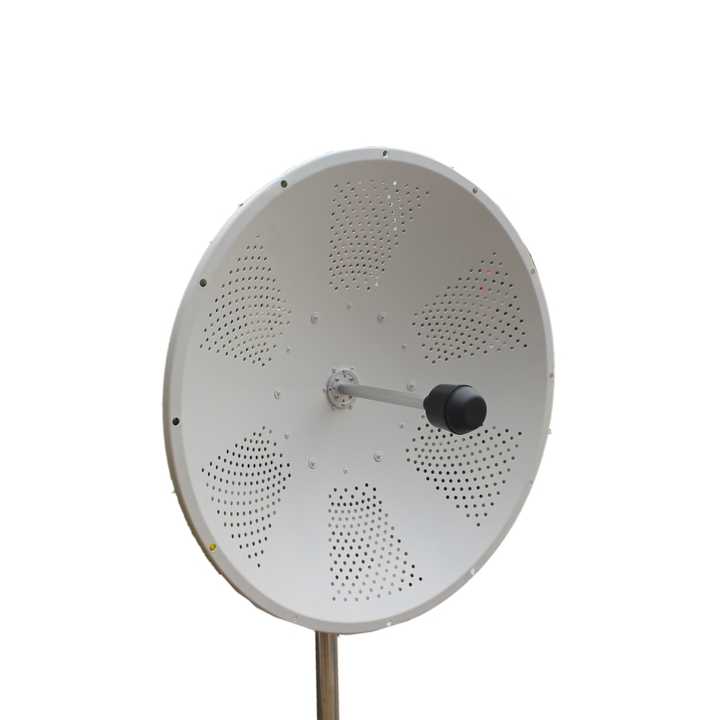

MIMO Parabolic Antenna from RFLINK ANTENNA is the RF-DP-D1742-22HV type. Its features include a high front-to-back ratio and a high gain (22dBi).
Frequency Range(MHz)：1710-2700 /3200-4200 MHz
Gain: 20±1 dBi 22±1 dBi
V.S.W.R : ≤1.8
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female
| Frequency Range(MHz) | 1710-2700 / 3200-4200 Mhz |
| Gain(dBi) | 20±1 / 22±1 |
Horizontal Beamwidth(°) | 15±5 12±5 |
Vertical Beamwidth(°) | 15±5 12±5 |
Polarization | H+V or ±45° |
F/B Ratio | ≥ 25 dB |
VSWR | ≤ 1.8 |
Impedance | 50 Ω |
| Connector | 2 x N-Female |
| Max. Power | 100 W |
| Lightning Protection | DC Ground |
Dimension | φ600mm |
Weight | 5 kg |
Operating Temperature | -40℃～+65℃ |
Wind Loading | 180 km/h |
Mounting | Pole Mount |
MIMO parabolic antenna from RFLINK ANTENNA is the RF-DP-D1742-22HV type. Its features include a high front-to-back ratio and a high gain (22dBi). It is appropriate for outdoor distant point-to-point (PTP) 4G LTE/5G signal transmission and can sustain high performance in the frequency range of 1710-4200MHz to address the issue of remote signal transmission or reception.

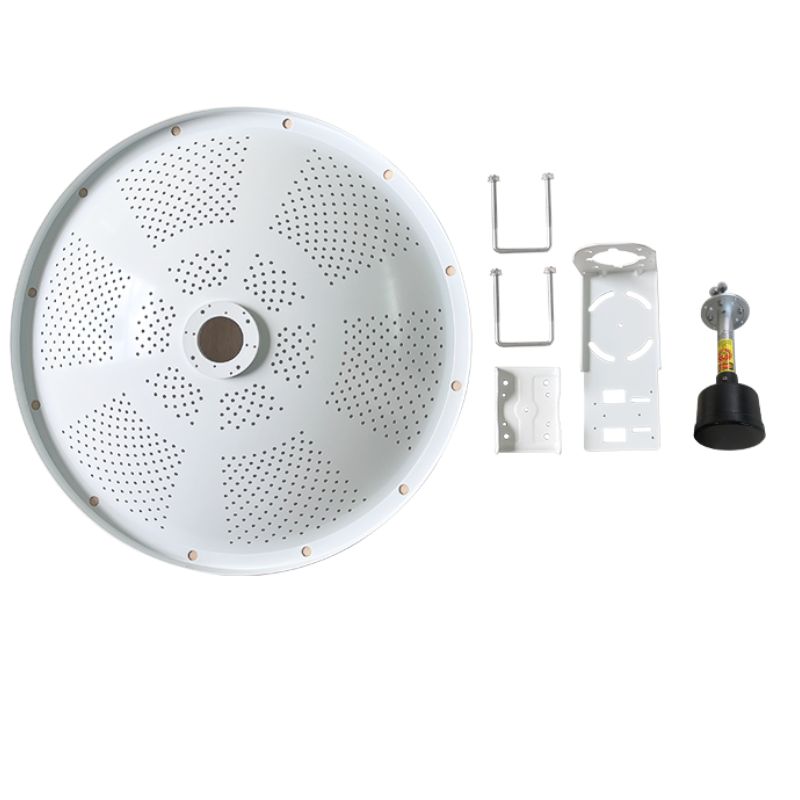

Regarding installation specifics, RFLINK ANTENNA has given components more humanistic thought, which has improved user experience and made installation quicker and easier.
Customers have preferred RFLINK ANTENNA throughout the years because to its high-quality antenna and expert service.
Applications
• Adjustable dual polarity feed horn systems
• 1700-2700MHz applications
• 4G LTE applications
• MIMO and 802.11n applications
• Long distance backhaul and Point to Point data links
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQs for 1710 - 4200 MHz 22 dBi MIMO Dish Antenna
1. What frequency range does it cover?
1710 - 4200 MHz, supporting 4G LTE, 5G, and WiMAX.
2. What is MIMO technology?
MIMO allows multiple data streams for faster speeds and better network performance.
3. Is it weatherproof?
Yes, it’s built for outdoor use and withstands harsh weather conditions.
4. What is the antenna’s range?
With 22 dBi gain, it offers long-range coverage, ideal for point-to-point links over several kilometers.
