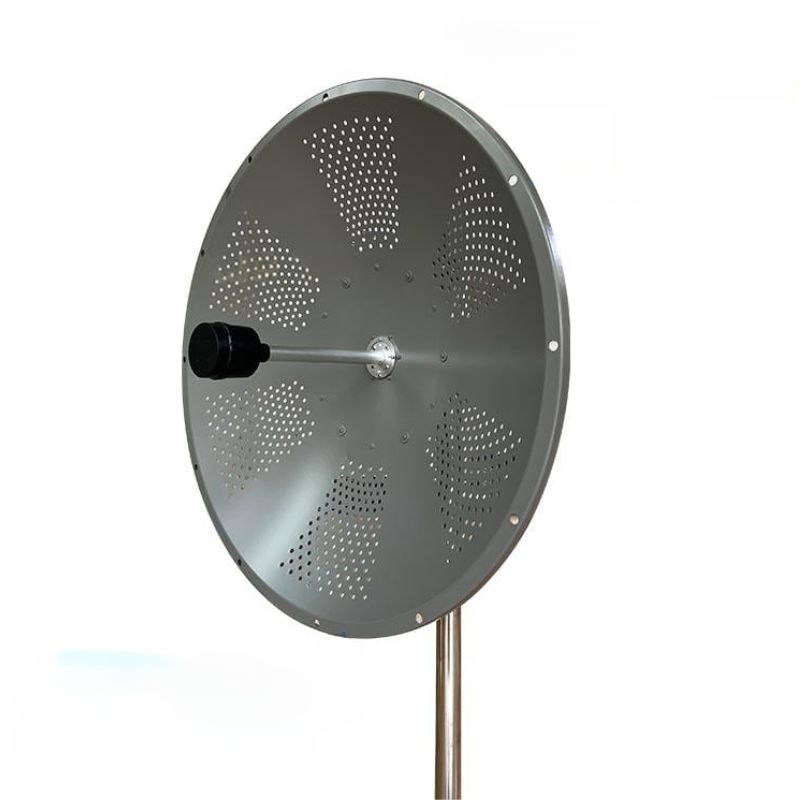

1710-4200 MHz 25 dBi MIMO Dish Antenna is a high-gain Parabolic Dish Antenna designed for long-range wireless communication. Ideal for 4G/5G networks, point-to-point links, and home satellite dish setups, it ensures strong signal strength and reliable performance.
Frequency Range(MHz):1710 - 2700 MHz 3200 - 4200 MHz
Gain: 23 dBi / 25 dBi
V.S.W.R : ≤1.8
Center frequency characteristic impedance (Ω):50
Connector Type:N-Female
Frequency Range(MHz) | 1710-2700 / 3200-4200 Mhz |
Gain(dBi) | 23 / 25 |
Horizontal Beamwidth(°) | 10/ 8 |
Vertical Beamwidth(°) | 10/7 |
Polarization | H+V or ±45° |
F/B Ratio | ≥ 25 dB |
VSWR | ≤ 1.8 |
Impedance | 50 Ω |
Connector | 2 x N-Female |
Max. Power | 100 W |
Lightning Protection | DC Ground |
Dimension | φ900mm |
Weight | 12 kg |
Operating Temperature | -40℃~+65℃ |
Wind Loading | 210 km/h |

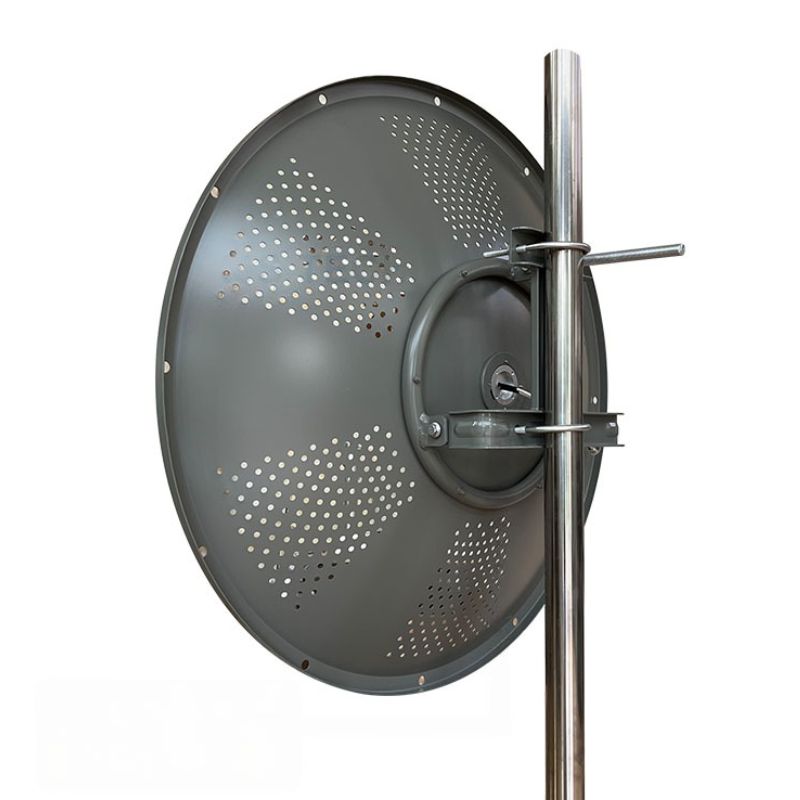

Mounting | Pole Mount |
RFLINK ANTENNA well-known MIMO parabolic antenna models is the RF-DP-D1742-25HV. Its features include a high front-to-back ratio and a high gain (25dBi). It is appropriate for outdoor distant point-to-point (PTP) 4G LTE/5G signal transmission and can sustain high performance in the frequency range of 1710-4200MHz to address the issue of remote signal transmission or reception. The 2.0mm thick paraboloid used in the RFLINK ANTENNA provides enough material to ensure the antenna's durability.

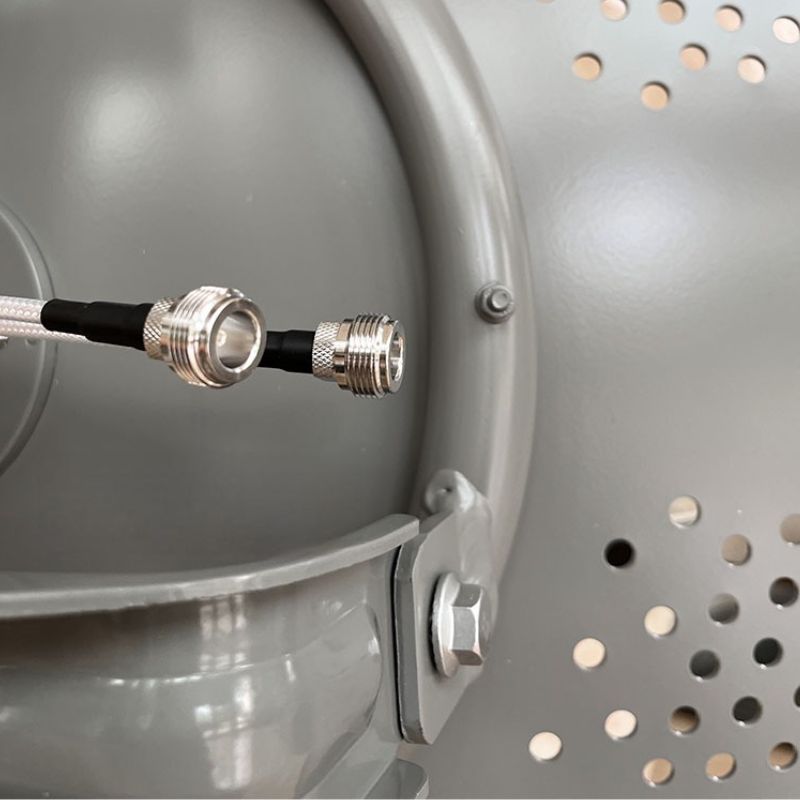

To minimize signal transmission loss and guarantee optimal performance, this antenna has two low-loss jumper cables and a pure copper N-Female connection.

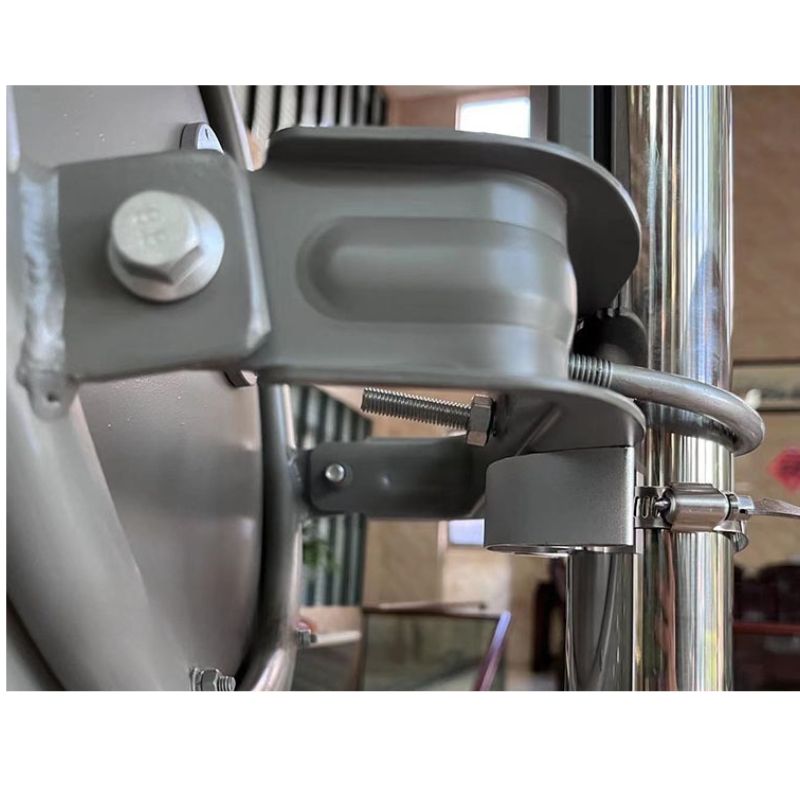

Regarding installation specifics, RFLINK ANTENNA has given components more humanistic thought, which has improved user experience and made installation quicker and easier.
Customers have selected RFLINK ANTENNA throughout the years because to its expert service and high-quality antennas.
Applications
• Adjustable dual polarity feed horn systems
• 1700-2700MHz applications
• 4G LTE applications
• MIMO and 802.11n applications
• Long distance backhaul and Point to Point data links
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
1. What is the frequency range of this antenna?
The antenna operates in the 1710–4200 MHz range, making it suitable for 4G, 5G, and other wireless communication systems within this spectrum.
2. What is the gain of the antenna?
The antenna provides a high gain of 25 dBi, ensuring strong signal strength and long-range performance for reliable communication.
3. Does this antenna support MIMO technology?
Yes, it is a MIMO (Multiple Input Multiple Output) antenna, which enhances data throughput and reduces signal interference for improved network performance.
4.What applications is this antenna best suited for?
This antenna is ideal for long-range wireless communication, including 4G/5G networks, point-to-point links, and fixed wireless access (FWA) systems.
