2.4 Ghz 13 Dbi Mimo Omni Antenna
  • 2.4 Ghz 13 Dbi Mimo Omni Antenna
  • 2.4 Ghz 13 Dbi Mimo Omni Antenna
  • 2.4 Ghz 13 Dbi Mimo Omni Antenna

2.4 Ghz 13 Dbi Mimo Omni Antenna

2.4 GHz 13 dBi MIMO Omni Antenna delivers high-speed, reliable Wi-Fi with enhanced range and coverage.



Frequency Range(MHz)433 MHz

Gain: 5 dbi

Center frequency characteristic impedance (Ω):50

Connector TypeN-Female or N-Male


  • Twitter
  • Facebook
  • Tiktok
  • Youtube
  • Main Technical Specifications
  • Product Specifications
  • Application Areas
  • Purchase and Contact Information
  • FAQ
Frequency Range(MHz)

2400 - 2500 MHz

Gain(dBi) 13 dBi

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(°)

28°

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector N-Female or SMA
Max. Power100 W
Lightning ProtectionDC Ground

Dimension

Φ 75 x 1265 mm

Weight

3.5 kg

Operating Temperature

-40℃~+65℃

Wind Loading

 214km/h

Mounting

Pole Mount


Our Antenna frequency range of 2400 MHZ to 2500 MHz, the MIMO omni antenna is a 2.4GHz dual-polarized omnidirectional antenna with excellent performance and low VSWR.  Due to its high gain, the 13dBi can receive signals from a great distance and cover a large enough region to address the issue of WiFi signal coverage.

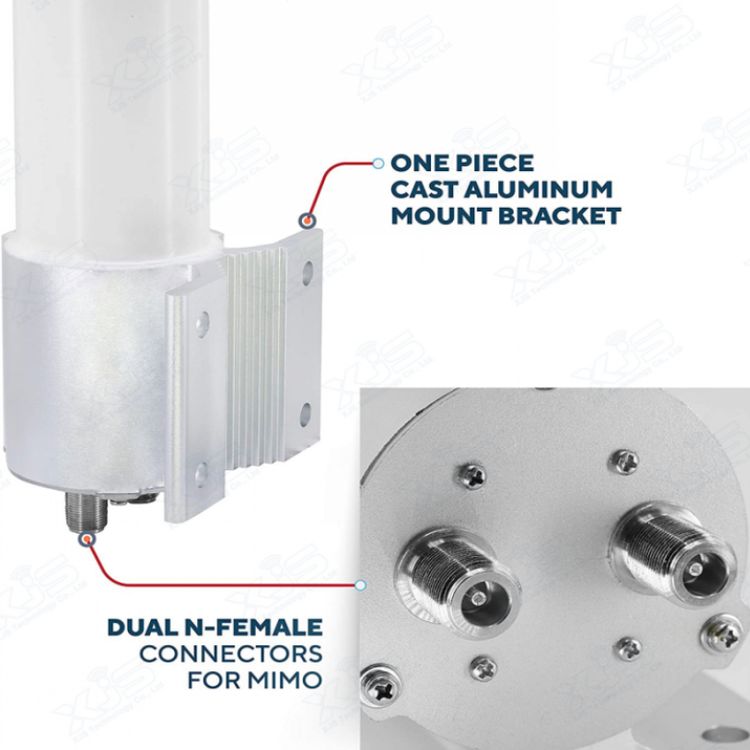

Pure copper connections and premium radome are used in the antenna.  Depending on their needs, customers can use SMA or N-female connections.  Customers both domestically and internationally have come to appreciate this high-quality antenna over the years.

Radios may connect directly to antennas thanks to RFLINK's special mounting brackets.  A pair of low-loss cable accessories are also offered by RFLINK for connecting to the antenna.  Speak with RFLINK employees to make a purchase based on your true requirements.

Applications


• Bluetooth® & Public Wireless Hotspot

• 2.4 GHz Indoor/Outdoor Wireless LAN systems

• Supports IEEE 802.11b/g/n applications

• WiFi and 2.4 GHz wireless video systems

• Public safety

Dongguan RenFeng Electronic Technology Co.,Ltd


Email: bellasu@rflink.net.cn


Mobile Phone: +86 1379-4978-989


        Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China


facebook 24     whatsapp 24     youtube 24


FAQ for 2.4 GHz 13 dBi MIMO Omni Antenna


1. What is MIMO technology, and how does it benefit this antenna?

MIMO (Multiple Input, Multiple Output) technology allows the antenna to transmit and receive multiple data streams simultaneously, improving signal reliability, speed, and overall performance for Wi-Fi and wireless networks.


2. What is the antenna’s frequency range, and where is it used?

This antenna operates in the 2.4 GHz frequency band, making it ideal for Wi-Fi routers, wireless access points, and other devices requiring high-speed, reliable connectivity.


3. What does the 13 dBi gain mean for performance?

The 13 dBi gain provides enhanced signal strength and extended range, ensuring better coverage and connectivity for both indoor and outdoor applications.


4. Is the antenna suitable for outdoor use?

Yes, the antenna is designed with durable materials that are weather-resistant, making it suitable for outdoor installations in various environmental conditions.


5. What type of connectors does the MIMO Omni Antenna use?

It typically features RP-SMA or N-type connectors, ensuring compatibility with a wide range of networking equipment. Always check product specifications to confirm connector types.
