2.4 Ghz 16 Dbi Mimo Panel
  • 2.4 Ghz 16 Dbi Mimo Panel
  • 2.4 Ghz 16 Dbi Mimo Panel
  • 2.4 Ghz 16 Dbi Mimo Panel

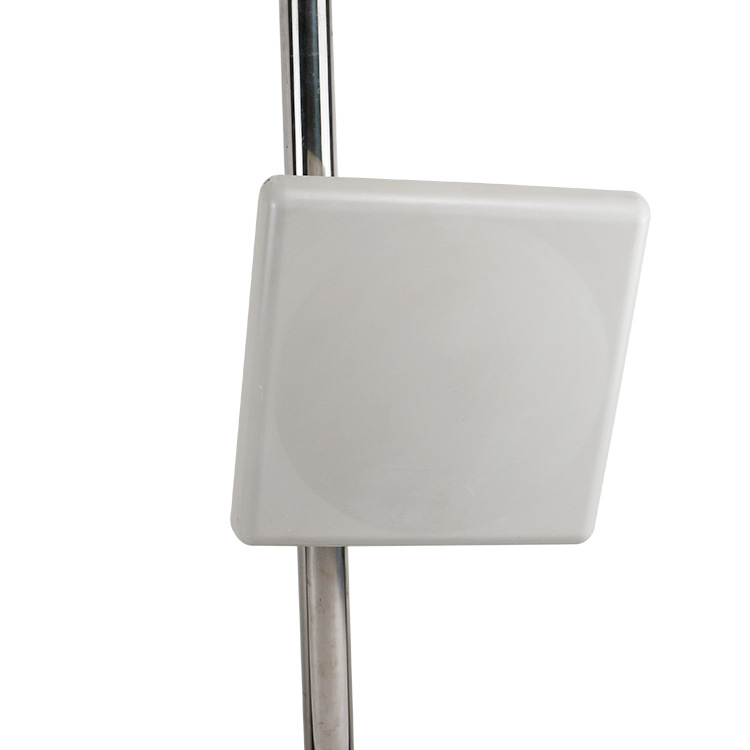

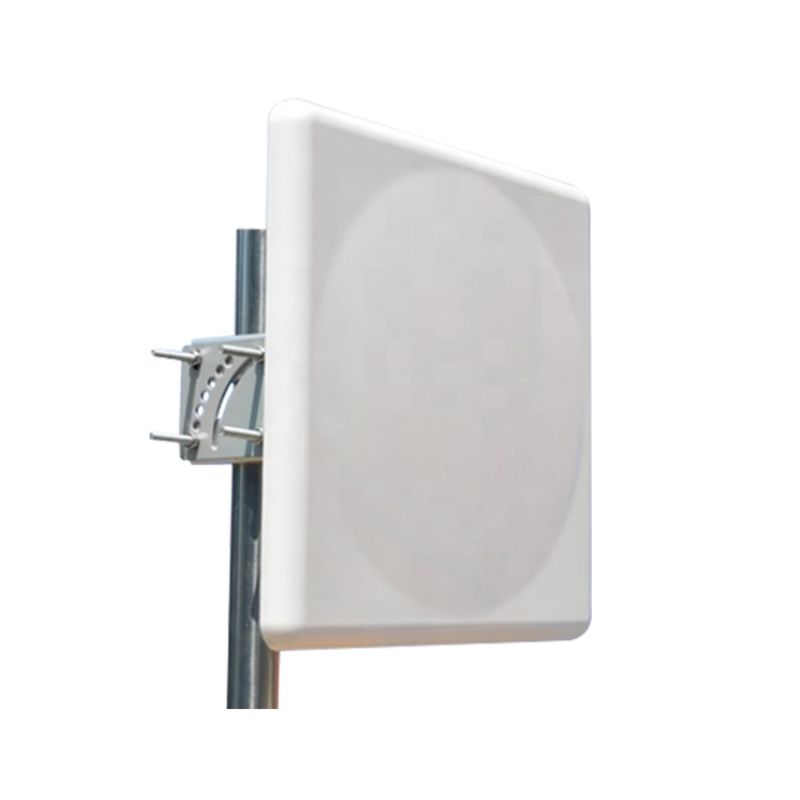

2.4 Ghz 16 Dbi Mimo Panel

2.4 GHz 16 dBi MIMO Panel Antenna is a high-performance solution designed for superior wireless communication. Ideal for outdoor and long-range applications, it enhances the strength and reliability of your Wi-Fi or data transmission over large distances.


Frequency Range(MHz):2400 - 2500 MHz

Gain: 18 dBi

Center frequency characteristic impedance (Ω):50

Connector Type:2 x N-Female


  • Twitter
  • Facebook
  • Tiktok
  • Youtube
  • Main Technical Specifications
  • Product Specifications
  • Application Areas
  • Purchase and Contact Information
  • FAQ
Frequency Range(MHz)

2400 - 2500 MHz

Gain(dBi)16 dBi

Horizontal Beamwidth(3dB)

20°

Vertical Beamwidth(°)

20°

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector  N-Female
Max. Power100 W
Lightning ProtectionDC Ground

Dimension

306 x 306 x 30 mm

Weight

1.0 kg

Operating Temperature

-40℃~+65℃

Wind Loading

 210 km/h

Mounting

Pole Mount


1. Frequency Range

Frequency: 2.4 GHz ISM band

Bandwidth: Typically around 100 MHz or more, depending on the design


2. Antenna Gain

Gain: 16 dBi

Effect: Increases signal strength and range, ideal for long-distance communications.


3. MIMO Technology

Configuration: 2x2 MIMO or 4x4 MIMO (depends on model)

Benefit: Provides increased throughput and reliability by using multiple transmit and receive paths.


4. Radiation Pattern

Type: Directional (Panel)

Beamwidth:

Horizontal Beamwidth: Typically 30°–60°

Vertical Beamwidth: Typically 30°–60°


5. Impedance

Impedance: 50 ohms (standard for most wireless communication systems)


6. Polarization

Polarization Type: Typically Linear or Vertical polarization, depending on the antenna design.


Applications


• Bluetooth® & Public Wireless Hotspot

• 2.4 GHz Indoor/Outdoor Wireless LAN systems

• Supports IEEE 802.11b/g/n applications

• WiFi and 2.4 GHz wireless video systems

• Public safety

• Security monitory

Dongguan RenFeng Electronic Technology Co.,Ltd


Email: bellasu@rflink.net.cn


Mobile Phone: +86 1379-4978-989


           Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China


facebook 24     whatsapp 24     youtube 24



1. What is the 2.4 GHz 16 dBi MIMO Panel Antenna used for?
This antenna is designed to enhance wireless communication over long distances. It’s ideal for outdoor applications, improving Wi-Fi range and reliability in point-to-point and point-to-multipoint setups.


2. How does MIMO technology improve performance?
MIMO (Multiple Input Multiple Output) allows the antenna to transmit and receive multiple signals simultaneously, reducing interference, boosting speed, and improving signal quality for faster and more stable connections.


3. What range can I expect from this antenna?
With a 16 dBi gain, the antenna offers extended range, delivering strong signals over long distances. The exact range depends on environmental factors like obstacles and interference, but it significantly improves coverage.


4. Is this antenna weather-resistant?
Yes, the 2.4 GHz 16 dBi MIMO Panel Antenna is designed for outdoor use and is built to withstand harsh weather conditions, ensuring reliable performance in challenging environments.


Relted Products

  • High-Performance 5g Nr Antennas for Reliable Connectivity

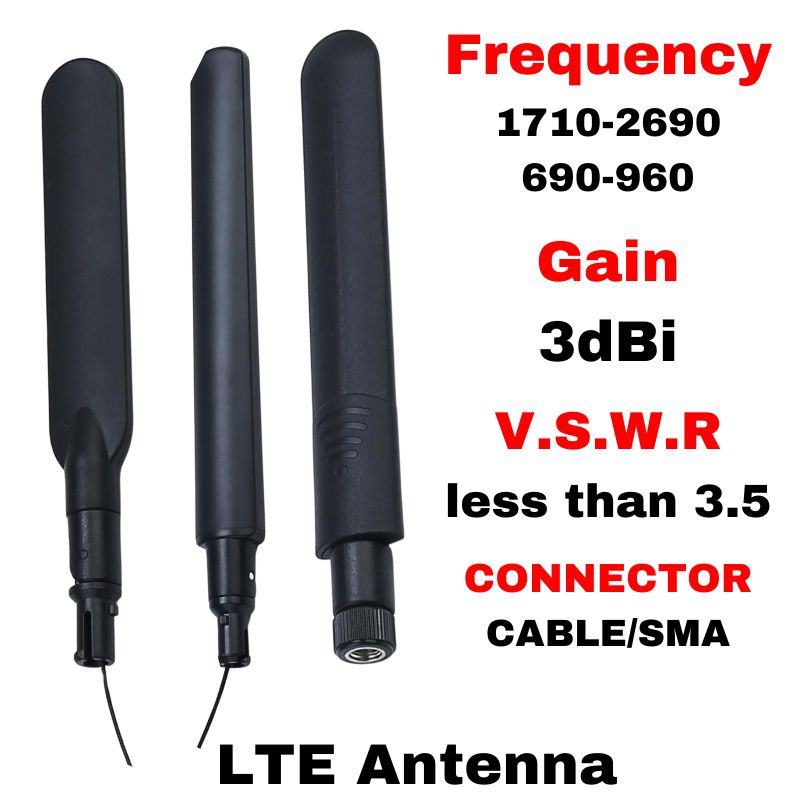

  • LTE Antenna
