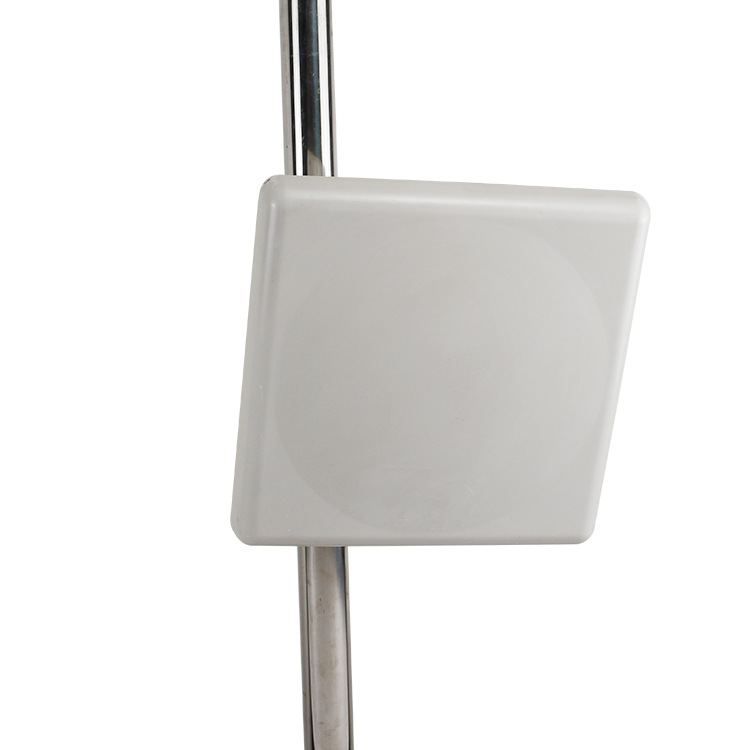

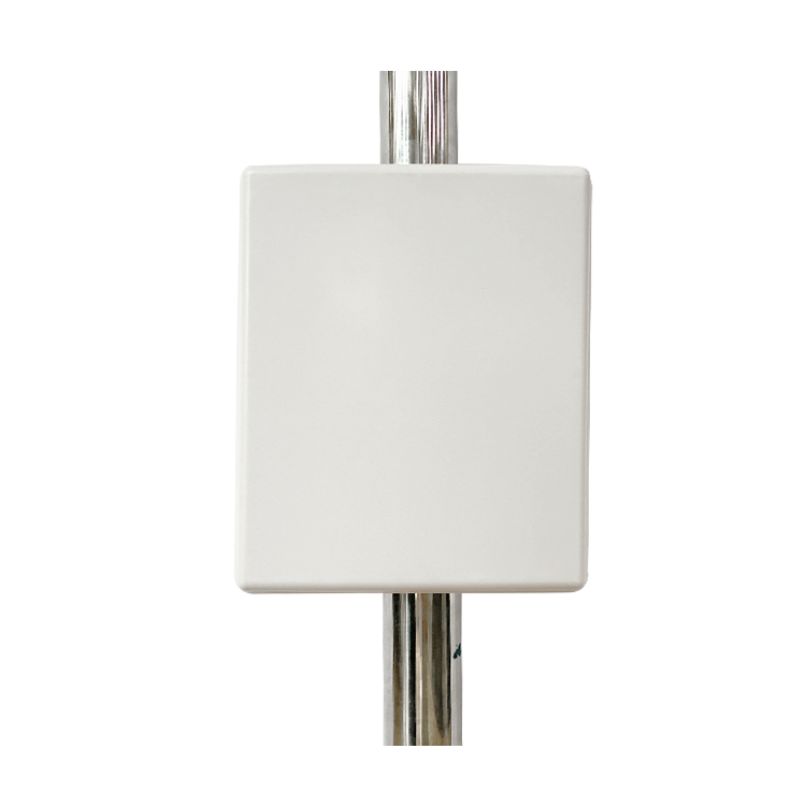

2.4 Ghz 18 Dbi Panel Antenna
  • 2.4 Ghz 18 Dbi Panel Antenna
  • 2.4 Ghz 18 Dbi Panel Antenna
  • 2.4 Ghz 18 Dbi Panel Antenna

2.4 Ghz 18 Dbi Panel Antenna

2.4 GHz 18 dBi Panel Antenna is a high-performance solution designed for robust wireless communication in the 2.4 GHz frequency range. Ideal for WiFi, IoT, and other wireless applications, this Panel Antenna offers an impressive 18 dBi gain, ensuring strong signal strength and extended coverage.


Frequency Range(MHz):2400 - 2500 MHz

Gain: 18 dBi

Center frequency characteristic impedance (Ω):50

Connector Type:2 x N-Female


  • Twitter
  • Facebook
  • Tiktok
  • Youtube
  • Main Technical Specifications
  • Product Specifications
  • Application Areas
  • Purchase and Contact Information
  • FAQ
Frequency Range(MHz)

2400 - 2500 MHz

Gain(dBi)18 dBi

Horizontal Beamwidth(3dB)

20°

Vertical Beamwidth(°)

20°

Polarization

Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector  N-Female
Max. Power100 W
Lightning ProtectionDC Ground

Dimension

306 x 306 x 30 mm

Weight

1.0 kg

Operating Temperature

-40℃~+65℃

Wind Loading

 210 km/h

Mounting

Pole Mount


2.4 GHz 18 dBi Panel Antenna is a high-performance solution designed for robust wireless communication in the 2.4 GHz frequency range. Ideal for WiFi, IoT, and other wireless applications, this panel antenna offers an impressive 18 dBi gain, ensuring strong signal strength and extended coverage. Its flat, low-profile design makes it easy to install in a variety of environments, both indoors and outdoors, while its durable construction ensures long-term reliability, even in harsh conditions.


While primarily designed for 2.4 GHz, this versatile cellular panel antenna can also be adapted for other frequencies, such as 900 MHz, making it a flexible choice for various wireless systems. Its efficient design minimizes wind resistance, making it ideal for outdoor installations where weather resistance is essential.


Whether you're setting up a wireless network, improving IoT connectivity, or enhancing communication for industrial equipment, this panel antenna delivers the performance and reliability you need. Its high gain and efficient design make it a cost-effective solution for extending the range and improving the stability of your wireless systems.


2.4 GHz 18 dBi Panel Antenna for a compact, high-gain solution that ensures robust and reliable wireless communication. Perfect for WiFi, IoT, and industrial applications, this panel antenna is your go-to choice for enhanced connectivity.


Applications


• Bluetooth® & Public Wireless Hotspot

• 2.4 GHz Indoor/Outdoor Wireless LAN systems

• Supports IEEE 802.11b/g/n applications

• WiFi and 2.4 GHz wireless video systems

• Public safety

• Security monitory

Dongguan RenFeng Electronic Technology Co.,Ltd


Email: bellasu@rflink.net.cn


Mobile Phone: +86 1379-4978-989


           Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China


facebook 24     whatsapp 24     youtube 24


FAQ for 2.4 GHz 18 dBi Panel Antenna


1. What is the gain of this antenna?
This panel antenna offers an 18 dBi gain, providing strong signal strength and extended coverage for wireless networks.


2. Can this antenna be used for 900 MHz applications?
Yes, this versatile 900 MHz panel antenna can be adapted for use in 900 MHz frequency range, making it suitable for various wireless systems.


3. Is this antenna suitable for cellular networks?
While primarily designed for 2.4 GHz, this cellular panel antenna can be adapted for cellular applications with the right configuration.


4. Can this antenna withstand outdoor conditions?
Absolutely. Built for durability, this panel antenna is weatherproof and designed to perform reliably in harsh outdoor environments.
