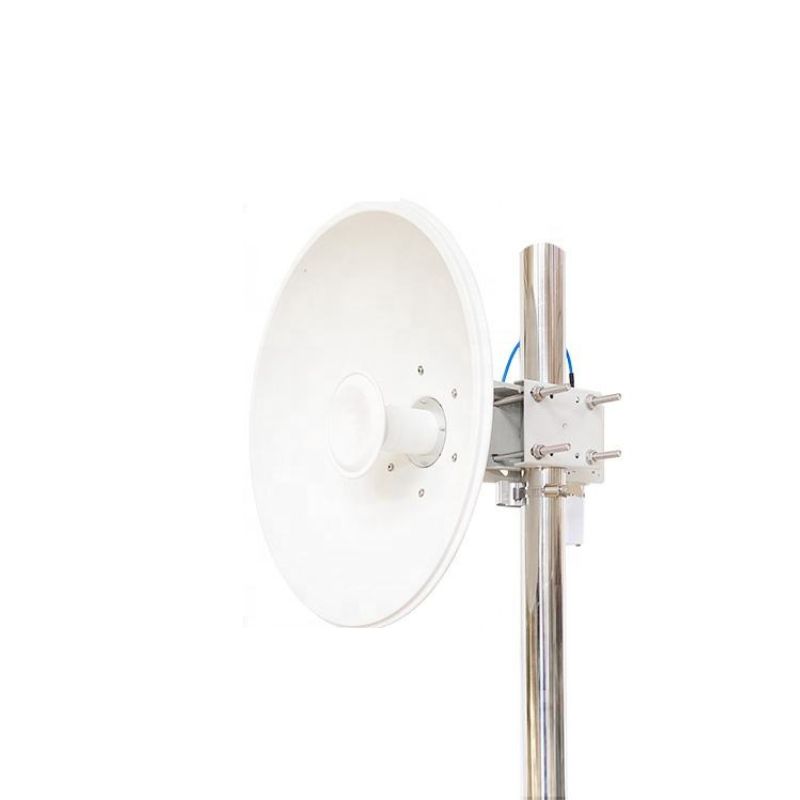

RF-DP-D4865-29X type is a small, compact, and very effective 5GHz MIMO Parabolic Antenna. With a diameter of just 42 cm, it possesses high gain characteristics of 29dBi.
Frequency Range(MHz):4800-6500 MHz
Gain: 29 dBi
V.S.W.R : ≤1.8
Center frequency characteristic impedance (Ω):50
Connector Type:SMA
Frequency Range(MHz) | 4800-6500 Mhz |
Gain(dBi) | 29 |
Horizontal Beamwidth(3dB) | 6.5° |
Vertical Beamwidth(3dB) | 6.5° |
Polarization | ± 45° |
F/B Ratio | ≥ 30 dB |
VSWR | ≤ 1.8 |
Impedance | 50 Ω |
Connector | 2 x SMA |
Max. Power | 100 W |
Lightning Protection | DC Ground |
Dimension | 420 x 420 x 120 mm |
Weight | 03 kg/ |
Operating Temperature | -40℃~+65℃ |
Wind Loading | 180 km/h |
Mounting | Pole Mount |
The RF-DP-D4865-29X type is a small, compact, and very effective 5GHz MIMO parabolic antenna. With a diameter of just 42 cm, it possesses high gain characteristics of 29dBi. As such, it can be utilized for point-to-point transmission and reception of weak signals where outside signal transmission is needed. RFLINK uses a new design approach that ensures high gain and good operational characteristics while making the antenna smaller than many antennas on the market today. This antenna has a relatively wide working bandwidth ranging from 4800 to 6500 MHz. The dual-polarization system of ±45° used by this antenna can provide smooth signal transmission with little loss.

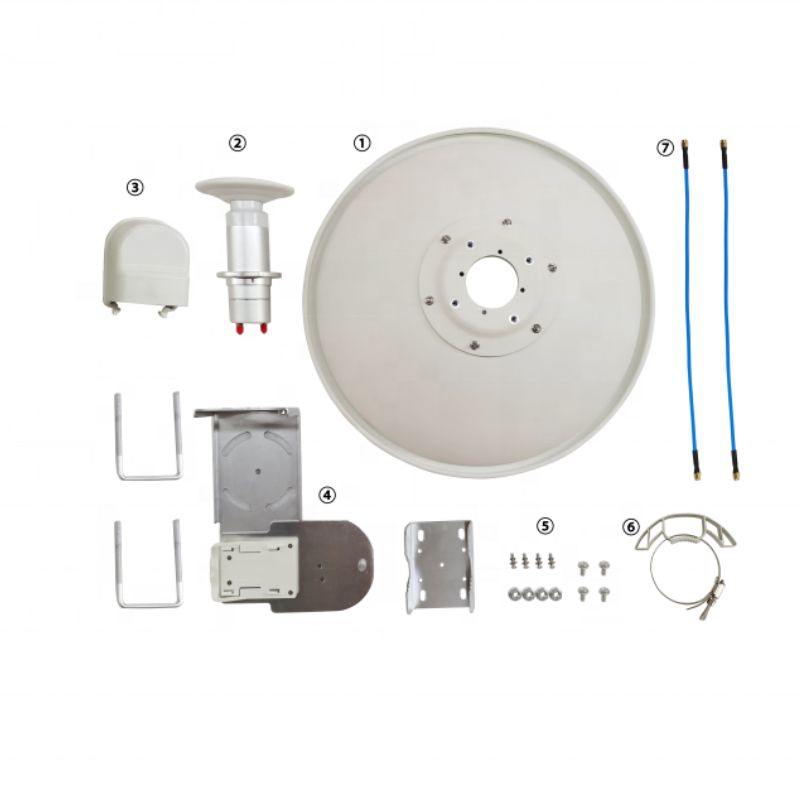

With two low-loss jumper wires 35cm and a pure copper SMA connector, this antenna is of excellent qualities that customers tend to like.In its installational details, RFLINK has put more humanity into its components to enhance user experience and make the installation that much faster and easier.

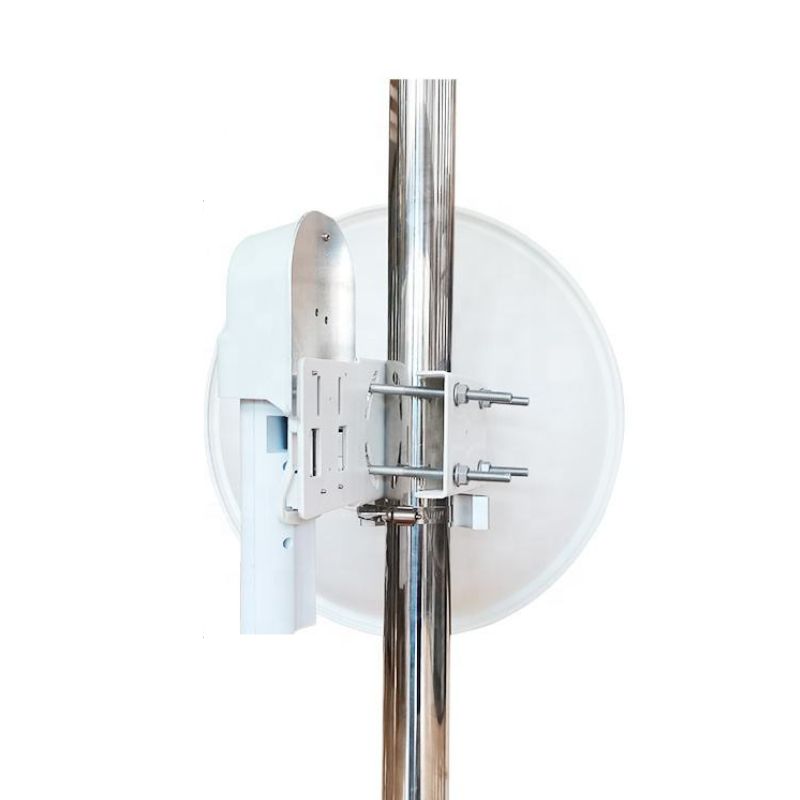

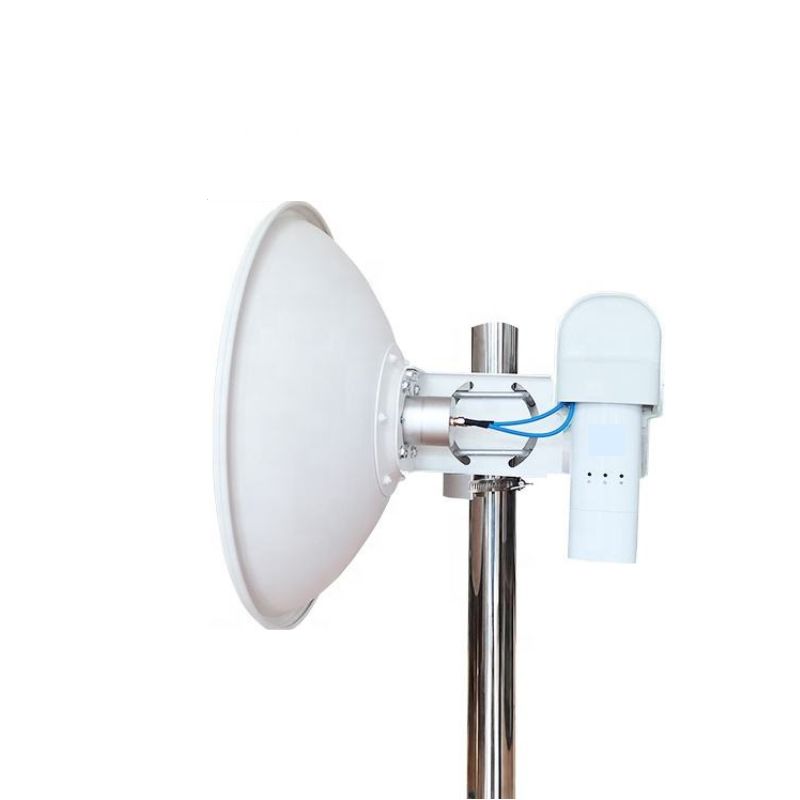

Easy bracket for UBNT or Mimosa radios comes with an L-shaped bracket that makes instalment unattended whenever connecting to Rocket M5, 5AC, or Mimosa c5c.
• Disaster recovery and rapid deployment of applications
• Campus and Academic Facilities
• High-power, long-distance point-to-point applications
• Municipal and Government Facilities
• Wireless Internet Providers and ISPs
• Security monitor
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
(FAQs) for a 29 dBi 4.8 - 6.5 GHz MIMO Dish Antenna:
1. What is the range of the 29 dBi 4.8 - 6.5 GHz MIMO Dish Antenna?
The range of the antenna depends on factors like transmit power, receiver sensitivity, and environmental conditions. However, with its high 29 dBi gain, it is designed for long-distance communication, typically covering several kilometers in line-of-sight (LOS) scenarios.
2.What does MIMO mean, and how does it benefit this antenna?
MIMO stands for Multiple Input, Multiple Output, which means the antenna supports multiple data streams for improved signal reliability, speed, and capacity. This is particularly useful for high-bandwidth applications like wireless broadband, 5G, or point-to-point links.
3.Can this antenna be used for 5G networks?
Yes, the 4.8 - 6.5 GHz frequency range falls within the mid-band spectrum used for 5G networks. This antenna is suitable for 5G applications, especially in fixed wireless access (FWA) or backhaul scenarios.
4.What type of mounting is required for this dish antenna?
This dish antenna typically requires a sturdy mounting setup, such as a pole or mast, to ensure stability and proper alignment. It is ideal for outdoor installations, and the mounting hardware should be compatible with the antenna's size and weight.
