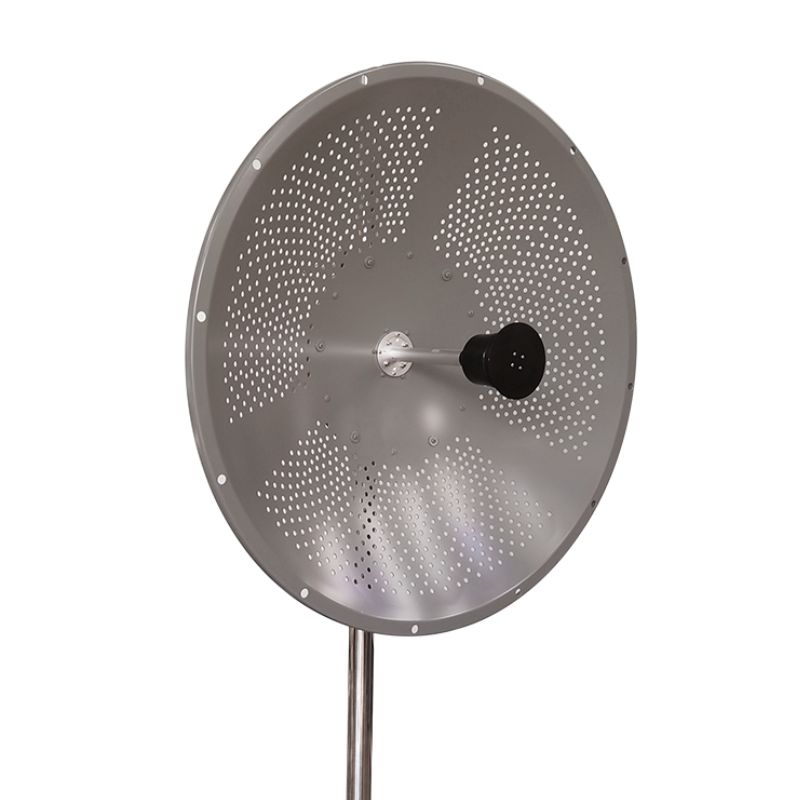

RF-DP-D3242-29HV is a MIMO Parabolic Antenna model that is popular with RFLINK ANTENNA. The model boasts a high front-to-back ratio along with high gain (29dBi).
Frequency Range(MHz)：3200-4200 MHz
Gain: 29 dBi
V.S.W.R : ≤1.8
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female
| Frequency Range(MHz) | 3200-4200 Mhz |
| Gain(dBi) | 29 |
Horizontal Beamwidth(3dB) | 6° |
Vertical Beamwidth(3dB) | 6° |
Polarization | H+V |
F/B Ratio | ≥ 32 dB |
VSWR | ≤ 1.8 |
Impedance | 50 Ω |
| Connector | 2 x N-Female |
| Max. Power | 100 W |
| Lightning Protection | DC Ground |
Dimension | φ900mm |
Weight | 12 kg |
Operating Temperature | -40℃～+65℃ |
Wind Loading | 214 km/h |

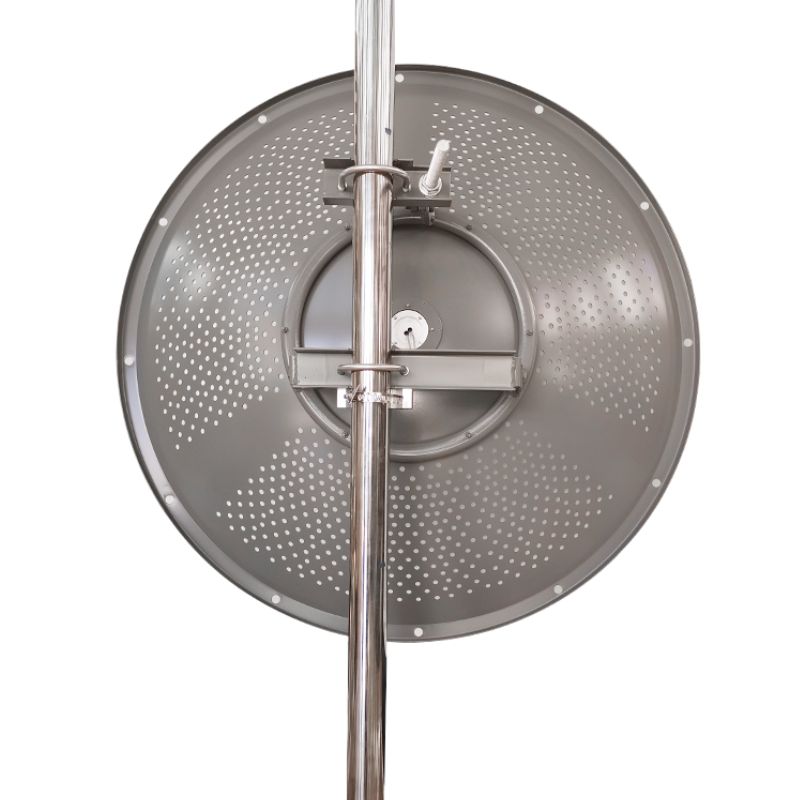

Mounting | Pole Mount |
RF-DP-D3242-29HV is a MIMO parabolic antenna model that is popular with RFLINK ANTENNA. The model boasts a high front-to-back ratio along with high gain (29dBi). The antenna is best used for outdoor Point-to-Point 5G signal transmission to solve the problem of receiving or sending signals remotely. High performance for this model is assured within the 3200-4200MHz frequency range.
With a thickness of 2.0mm, the paraboloid is made of high-quality material by RFLINK ANTENNA. Which is enough for high durability in its operation. Very low loss jumper cables provide for efficient signals and deliver optimal functioning with the quality assurance of pure copper N-Female.
Regarding installation specifics, RFLINK ATNENNA has given components more humanistic thought, which has improved user experience and made installation quicker and easier.
Customers have preferred RFLINK ANTENNA throughout the years because to its high-quality antenna and expert service.
Applications
• SOFDMA
• WiMAX 7 Mobile WiMAX
• Wireless Internet Provider "cell" sites
• 3.5 GHz Band Applications
• Wireless LAN systems & IEEE 802.16e Applications
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
1. What is the frequency range of this antenna?
The antenna operates in the 3.2 - 4.2 GHz range, making it suitable for applications like WiMAX, LTE, and 5G.
2. What is the gain of this antenna?
It has a high gain of 29 dBi, ideal for long-distance, high-performance wireless communication.
3. What are the typical uses of this antenna?
It is commonly used for point-to-point links, wireless backhaul, WISP deployments, and 5G mid-band connectivity.
