5 Ghz 20 Dbi Panel  Antenna
  • 5 Ghz 20 Dbi Panel  Antenna
  • 5 Ghz 20 Dbi Panel  Antenna
  • 5 Ghz 20 Dbi Panel  Antenna

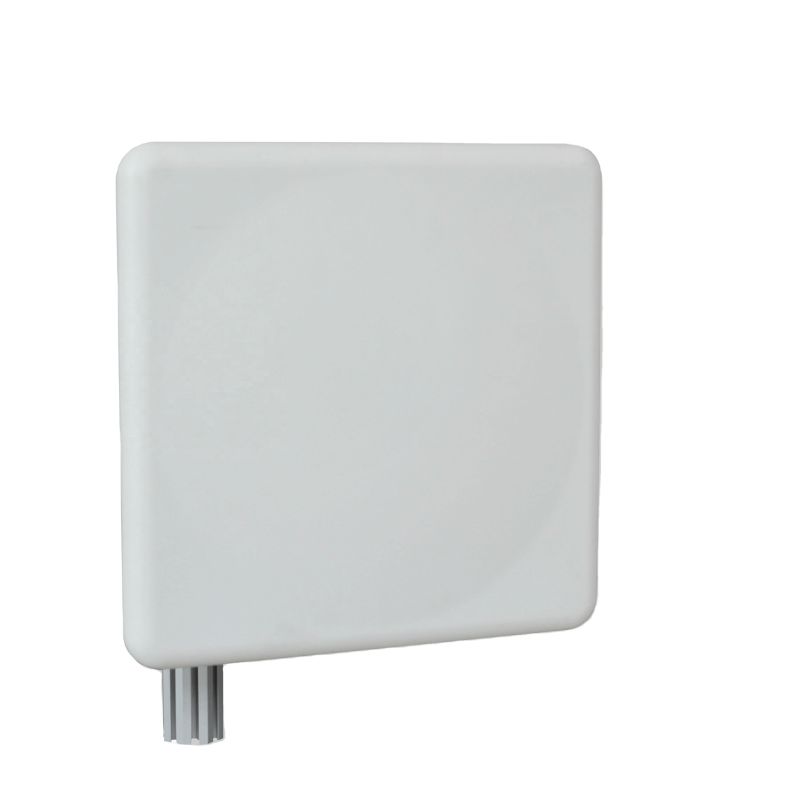

5 Ghz 20 Dbi Panel Antenna

5 GHz 20 dBi Flat Panel Antenna is a high-performance Antenna designed to enhance Wi-Fi coverage and signal strength for long-range wireless connections. With its 20 dBi gain, this Panel Antenna boosts the power and stability of your 5 GHz wireless network, making it ideal for outdoor or large-area installations.


Frequency Range(MHz):5150 - 5850 MHz

Gain: 20 dBi

Center frequency characteristic impedance (Ω):50

Connector Type:N-Female


  • Twitter
  • Facebook
  • Tiktok
  • Youtube
  • Main Technical Specifications
  • Product Specifications
  • Application Areas
  • Purchase and Contact Information
  • FAQ
Frequency Range(MHz)

5150 - 5850 MHz

Gain(dBi)20 dBi

Horizontal Beamwidth(3dB)

40°

Vertical Beamwidth(°)

Polarization

Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector  N-Female
Max. Power100 W
Lightning ProtectionDC Ground

Dimension

306 x 306 x 30 mm

Weight

1.0 kg

Operating Temperature

-40℃~+65℃

Wind Loading

 210 km/h

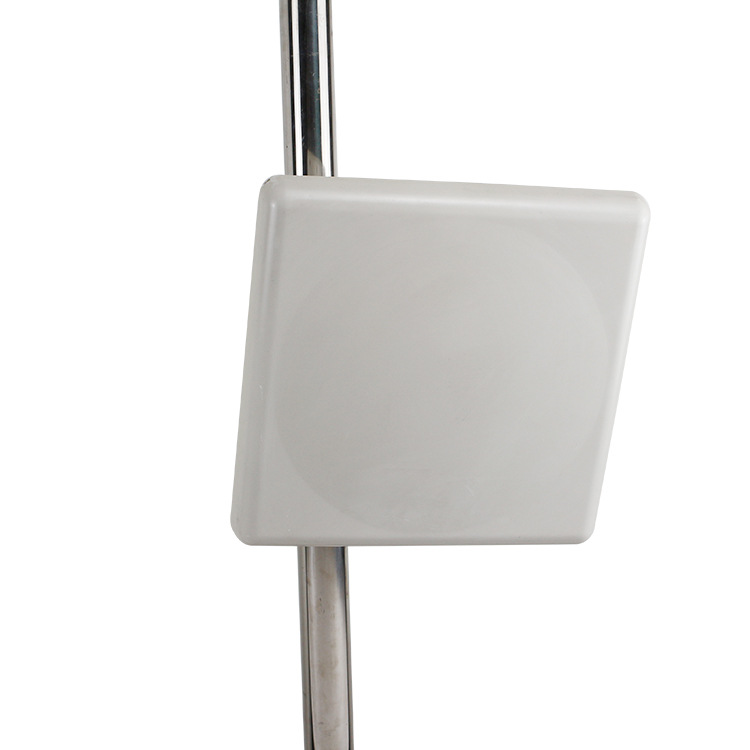

Mounting

Pole Mount


5 GHz 20 dBi Flat Panel Antenna is a high-performance antenna designed to enhance Wi-Fi coverage and signal strength for long-range wireless connections. With its 20 dBi gain, this panel antenna boosts the power and stability of your 5 GHz wireless network, making it ideal for outdoor or large-area installations. The flat panel antenna design ensures minimal wind resistance and easy mounting on walls or poles, providing a sleek and durable solution for various network setups.


Whether you’re deploying a point-to-point, point-to-multipoint, or mesh network, this Wi-Fi panel antenna delivers reliable performance and improves network efficiency by reducing interference. It’s built to withstand harsh outdoor conditions, offering excellent weather resistance and long-lasting durability.


Perfect for businesses, large homes, or industrial environments where strong, stable Wi-Fi coverage is needed, the 5 GHz 20 dBi Panel Antenna ensures seamless connectivity even in challenging environments. Upgrade your wireless network today with this high-gain, reliable panel antenna for superior performance.

Applications


• 5.1/5.3/5.4/5.8 GHz Wireless LAN systems

• IEEE 802.11a/n applications

• MIMO applications

• WiMAX, WISP, WiFi, mobile communication and cell-sites

• Security monitor

• Point-to-multipoint applications

Dongguan RenFeng Electronic Technology Co.,Ltd


Email: bellasu@rflink.net.cn


Mobile Phone: +86 1379-4978-989


           Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China


facebook 24     whatsapp 24     youtube 24


1. What is the 5 GHz 20 dBi Flat Panel Antenna used for?
High-gain antenna enhances your Wi-Fi network by boosting range and performance for 5 GHz connections. It’s ideal for outdoor or long-range applications, ensuring stable signal coverage.


2. How does the panel antenna improve signal strength?
20 dBi gain increases signal strength, providing better coverage over large areas. This reduces dead spots and improves connection stability, especially in environments with high interference.


3. Is the flat panel antenna weather-resistant?
Yes, the 5 GHz Wi-Fi panel antenna is designed for outdoor use and is built to withstand harsh weather conditions, ensuring reliable performance year-round.


4. How do I install this panel antenna?
Flat panel antenna is easy to mount on walls or poles. It’s designed for simple installation, whether you’re setting up a point-to-point link or improving overall Wi-Fi coverage.
