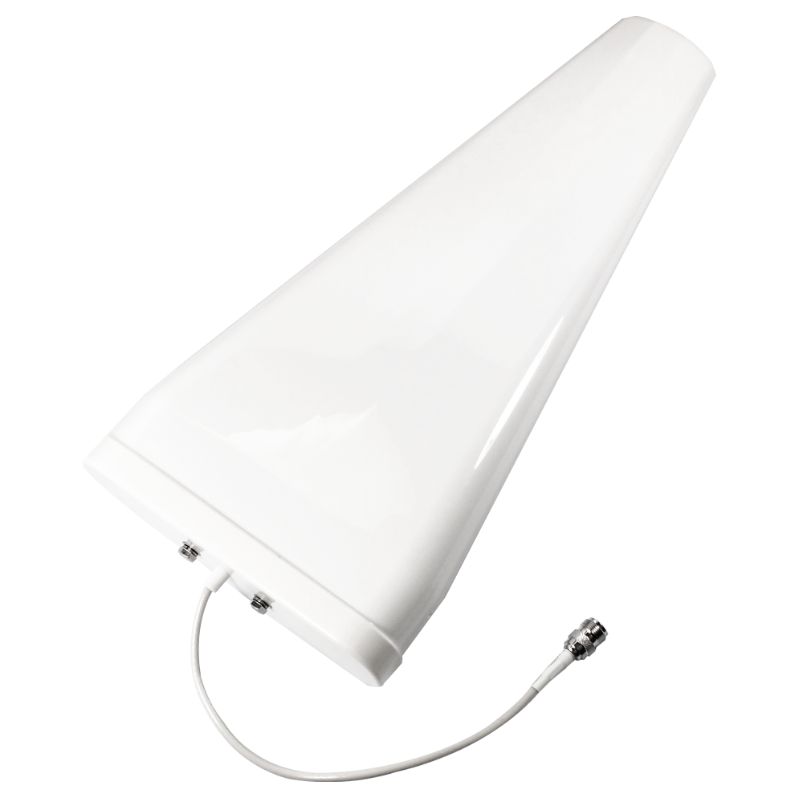

698 - 2700 Mhz 11 Dbi Log Periodic Antenna
  • 698 - 2700 Mhz 11 Dbi Log Periodic Antenna
  • 698 - 2700 Mhz 11 Dbi Log Periodic Antenna
  • 698 - 2700 Mhz 11 Dbi Log Periodic Antenna

698 - 2700 Mhz 11 Dbi Log Periodic Antenna

698-2700 MHz 11 dBi Log Periodic antenna is a high-gain, directional antenna for 4G LTE, GSM, Wi-Fi, and more. Durable, weatherproof, and ideal for long-range communication, outperforming Yagi antenna.


Frequency Range(MHz):689-2700 MHz

V.S.W.R: ≤1.8

Gain: 3/5/7dbi

Center frequency characteristic impedance (Ω):50

Connector Type:SMA/CABLE


  • Twitter
  • Facebook
  • Tiktok
  • Youtube
  • Main Technical Specifications
  • Product Specifications
  • Application Areas
  • Purchase and Contact Information
  • FAQ
Frequency Range(MHz)

698 - 960 / 1710 - 2700 MHz

Gain(dBi)10 / 11  dBi

Horizontal Beamwidth(3dB)

65° / 60°

Vertical Beamwidth(°)

50° / 40°

Polarization

Vertical

VSWR

≤ 1.7

Impedance

50 Ω

Connector 2 x N-Female
Max. Power50 W
Lightning ProtectionDC Ground

Dimension

442 x 205 x 62 mm

Weight

1.2 kg

Operating Temperature

-40℃~+65℃

Wind Loading

 140km/h

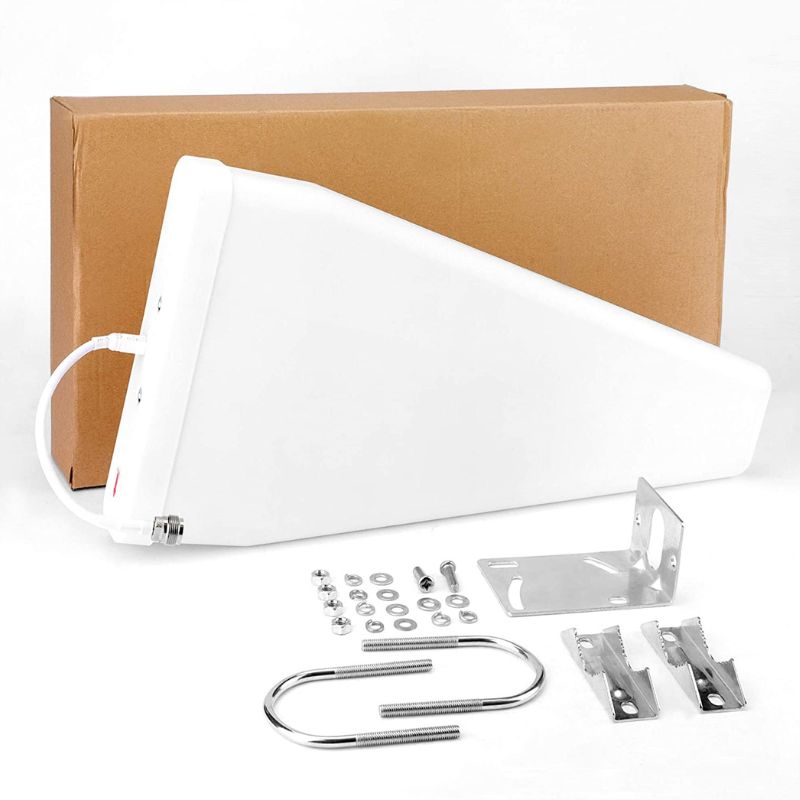

Mounting

Pole Mount


698-2700 MHz 11 DBi Log Periodic Antenna is a high-performance, directional antenna designed for a wide range of wireless communication applications. Operating within the frequency range of 698 to 2700 MHz, this antenna is ideal for 4G LTE, GSM, CDMA, and other cellular networks, as well as Wi-Fi and public safety systems. With a gain of 11 dBi, it ensures strong signal reception and transmission over long distances, making it perfect for both indoor and outdoor use.


log periodic antenna features a robust, weatherproof design, ensuring durability and reliable performance in various environmental conditions. Its compact and lightweight structure allows for easy installation on poles, towers, or walls. The antenna’s directional capabilities minimize interference and maximize signal strength, making it an excellent choice for point-to-point communication, base stations, and signal enhancement in remote areas.


Compared to traditional Yagi antennas, this log periodic antenna offers a broader frequency range and consistent performance across its entire bandwidth. Whether you're enhancing cellular coverage, improving Wi-Fi connectivity, or setting up a dedicated communication link, the 698-2700 MHz 11 DBi Log Periodic Antenna delivers exceptional performance and versatility for your wireless needs.


Applications


• LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications

• Cellular networks

• DAS (Distributed Antenna Systems)

• IEEE 802.11b/g WiFi applications

• Public safety

Dongguan RenFeng Electronic Technology Co.,Ltd


Email: bellasu@rflink.net.cn


Mobile Phone: +86 1379-4978-989


        Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China


facebook 24     whatsapp 24     youtube 24



FAQ: 698-2700 MHz 11 dBi Log Periodic Antenna


Q1: What is a log periodic antenna?

A: A log periodic antenna is a directional antenna designed to operate over a wide frequency range, offering consistent performance and high gain.


Q2: What is the frequency range of this antenna?

A: It operates from 698 to 2700 MHz, making it suitable for 4G LTE, GSM, CDMA, Wi-Fi, and public safety systems.


Q3: What is the gain of this antenna?

A: The antenna has a gain of 11 dBi, ensuring strong signal reception and transmission over long distances.


Q4: How does it compare to a Yagi antenna?

A: Unlike Yagi antennas, this log periodic antenna offers a broader frequency range and consistent performance across its bandwidth.


Q5: Is it weatherproof?

A: Yes, it features a durable, weatherproof design for reliable performance in various environmental conditions.


Q6: Where can it be used?

A: Ideal for point-to-point communication, base stations, and enhancing signals in remote or weak coverage areas.


Q7: Is it easy to install?

A: Yes, its compact and lightweight design allows for easy mounting on poles, towers, or walls.
