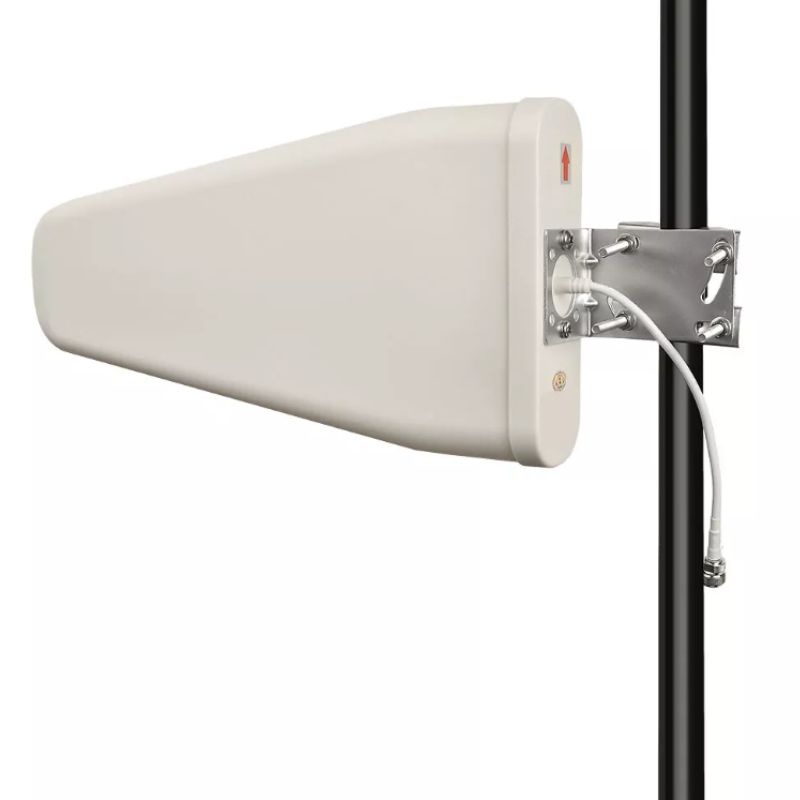

698-2700 MHz 9 dBi Log Periodic-Antenna is a directional, high-gain Antenna for Wi-Fi, 4g Lte, and more. Outperforms Yagi Antennas with broader frequency range and reliable signal enhancement.
Frequency Range(MHz)：698-960 / 1710-2700 Mhz
Gain: 9/10 dbi
Center frequency characteristic impedance (Ω)：50
Connector Type：N Female
| Frequency Range(MHz) | 698 - 960 / 1710 - 4200 MHz |
| Gain(dBi) | 9/ 10 dBi |
Horizontal Beamwidth(3dB) | 85° / 60° |
Vertical Beamwidth(°) | 60° / 50° |
Polarization | Vertical |
| VSWR | ≤ 1.7 |
Impedance | 50 Ω |
| Connector | 2 x N-Female |
| Max. Power | 50 W |
| Lightning Protection | DC Ground |
Dimension | 442 x 205 x 62 mm |
Weight | 0.9 kg |
Operating Temperature | -40℃～+65℃ |
Wind Loading | 140km/h |

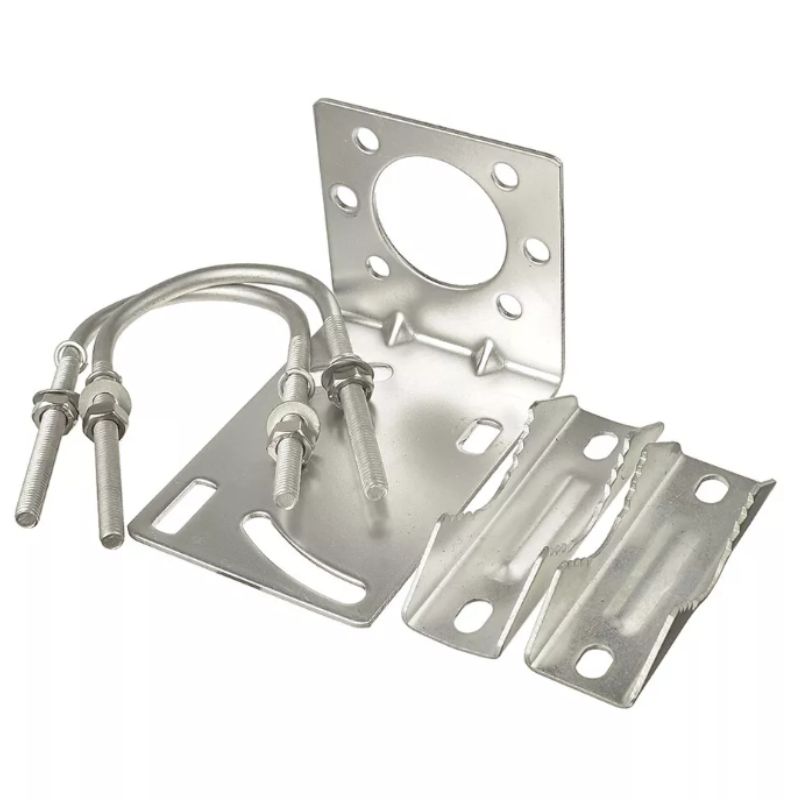

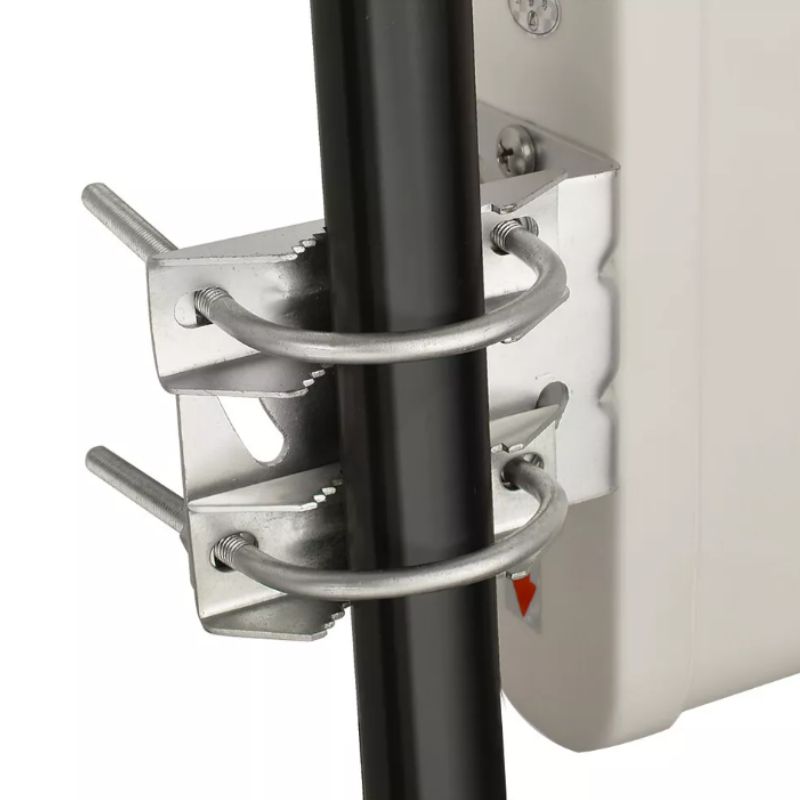

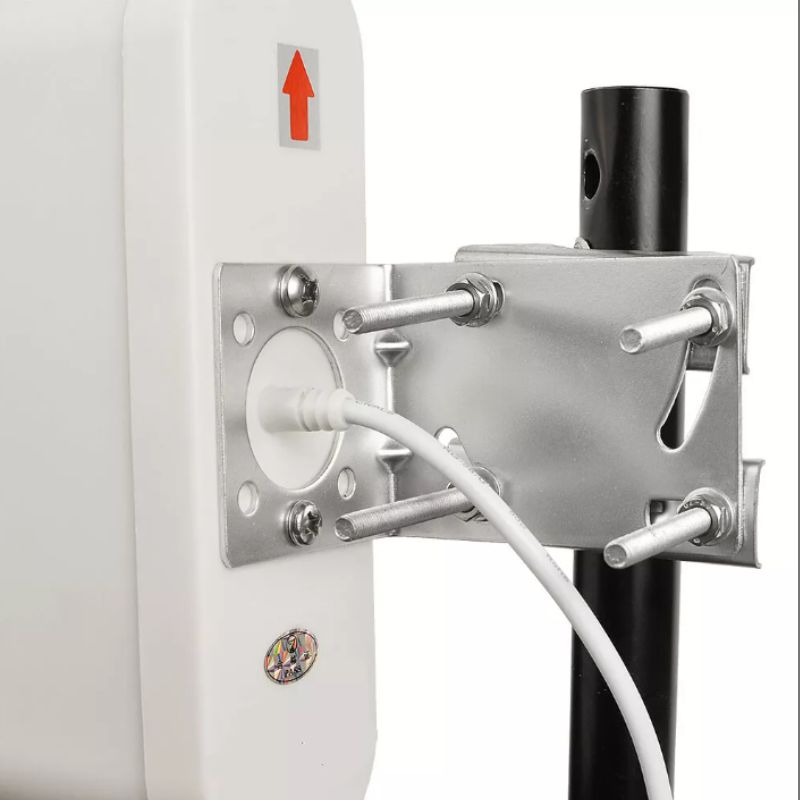

Mounting | Pole Mount |
698-2700 MHz 9 dBi Log Periodic Antenna is a high-performance, directional antenna designed to enhance wireless communication for a variety of applications. Operating within the frequency range of 698 to 2700 MHz, this antenna is ideal for Wi-Fi networks, 4G LTE, GSM, and other cellular systems. With a gain of 9 dBi, it provides strong signal reception and transmission, making it perfect for long-range communication and signal enhancement in areas with weak coverage.
Directional log periodic antenna is an excellent alternative to traditional Yagi antennas, offering a broader frequency range and consistent performance across its bandwidth. Its compact and lightweight design ensures easy installation on poles, towers, or walls, making it suitable for both indoor and outdoor use. The antenna’s weatherproof construction ensures durability and reliable performance in various environmental conditions, making it a dependable choice for long-term use.
Ideal for point-to-point communication, base stations, and improving Wi-Fi connectivity, this antenna minimizes interference and maximizes signal strength. Whether you're extending the range of your Wi-Fi network, enhancing cellular coverage, or setting up a dedicated communication link, the 698-2700 MHz 9 dBi Log Periodic Antenna delivers exceptional performance and versatility. Its directional capabilities make it a superior choice for targeted signal enhancement, outperforming traditional Yagi antennas in both range and reliability.
Applications
• LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications
• Cellular networks
• DAS (Distributed Antenna Systems)
• IEEE 802.11b/g WiFi applications
• Public safety
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQ: 698-2700 MHz 9 dBi Log Periodic Antenna
Q1: What is a directional log periodic antenna?
A: It’s a high-performance antenna designed for long-range, directional communication, offering consistent performance across a wide frequency range.
Q2: What is the frequency range of this antenna?
A: It operates from 698 to 2700 MHz, making it suitable for Wi-Fi, 4G LTE, GSM, and other wireless systems.
Q3: How does it compare to a Yagi antenna for Wi-Fi?
A: Unlike a Wi-Fi Yagi antenna, this log periodic antenna offers a broader frequency range and better performance across its bandwidth, making it more versatile.
Q4: What is the gain of this antenna?
A: It has a gain of 9 dBi, ensuring strong signal reception and transmission for long-range applications.
Q5: Is it suitable for outdoor use?
A: Yes, its weatherproof design ensures durability and reliable performance in various environmental conditions.
Q6: What are its typical uses?
A: Ideal for extending Wi-Fi range, enhancing cellular coverage, and point-to-point communication in areas with weak signals.
Q7: Is it easy to install?
A: Yes, its compact and lightweight design allows for easy mounting on poles, towers, or walls.
