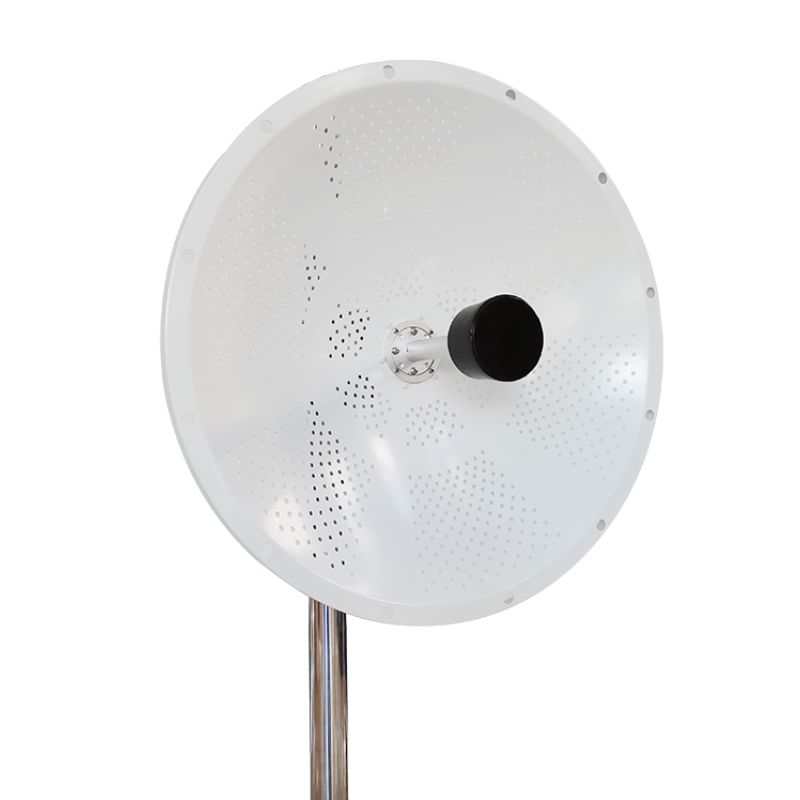

RF-DP-D3242-24HV appear to be well-liked MIMO Parabolic Antennas, boasting some considerable features in terms of high front-to-back ratio and gain (24dBi).
Frequency Range(MHz)：3200-4200 MHz
Gain: 24 dBi
V.S.W.R : ≤1.8
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female
| Frequency Range(MHz) | 3200-4200 Mhz |
| Gain(dBi) | 24 |
Horizontal Beamwidth(3dB) | 8° |
Vertical Beamwidth(3dB) | 8° |
Polarization | H+V |
F/B Ratio | ≥ 28 dB |
VSWR | ≤ 1.8 |
Impedance | 50 Ω |
| Connector | 2 x N-Female |
| Max. Power | 100 W |
| Lightning Protection | DC Ground |
Dimension | φ600mm |
Weight | 5kg |
Operating Temperature | -40℃～+65℃ |
Wind Loading | 180 km/h |

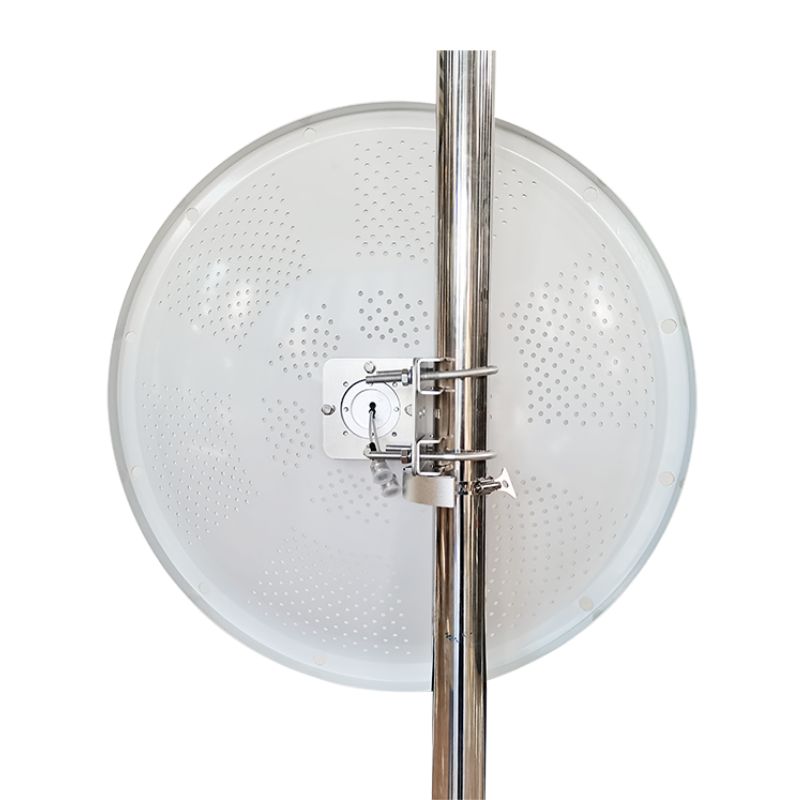

Mounting | Pole Mount |
RF-DP-D3242-24HV appear to be well-liked MIMO parabolic antennas, boasting some considerable features in terms of high front-to-back ratio and gain (24dBi). This is, of course, very useful in outdoor remote point-to-point (PTP) 5G signal transmission, tackling the problem of remote signal reception or transmission, with good performance in the frequencies of 3200-4200MHz.

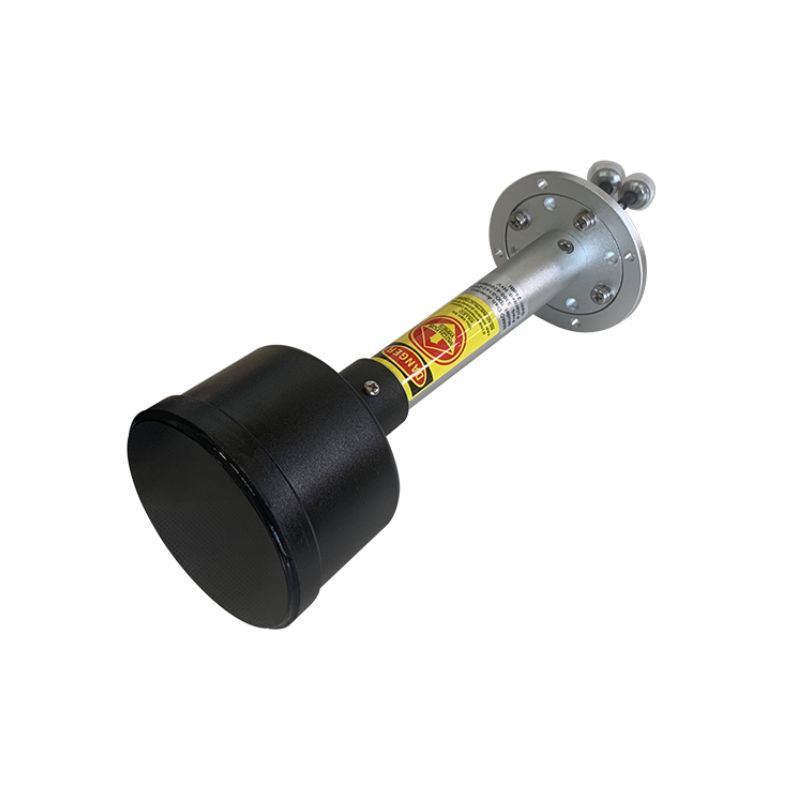

The RFLINK ATENNA's paraboloid is 1.5mm thick and provides enough material for making the antenna durable. In addition, the antenna comprises two low-loss jumper cables and a pure N-Female connector made out of a copper.
The installation features of the RFLINK ANTENNA have endowed the components with a more humanistic touch, enhancing the user experience while also making the installation faster and easier.
For years, customers have relied on RFLINK ANTENNA for their great expertise and the high quality of their antennas.
SOFDMA
WiMAX 7 Mobile WiMAX
Wireless Internet Provider "cell" sites
3.5 GHz Band Applications
Wireless LAN systems & IEEE 802.16e Applications
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQ for 3200 - 4200 MHz 24 Dbi Mimo Dish Antenna
1. What is the frequency range of this antenna?
The antenna operates within the frequency range of 3200 MHz to 4200 MHz, making it suitable for applications like 5G, WiMAX, and other wireless communication systems.
2. What is the gain of the antenna?
The antenna has a high gain of 24 dBi, which ensures strong signal reception and transmission over long distances.
3. Is this antenna compatible with MIMO technology?
Yes, this is a MIMO (Multiple Input Multiple Output) antenna, designed to support enhanced data throughput and improved signal reliability for advanced wireless networks.
