Our WiFi dual-band fiberglass antenna works on 2.4-2.5GHz and 5.15-5.8GHz, which has great coverage and performance over Bluetooth, BLE, ZigBee and wireless LAN etc.

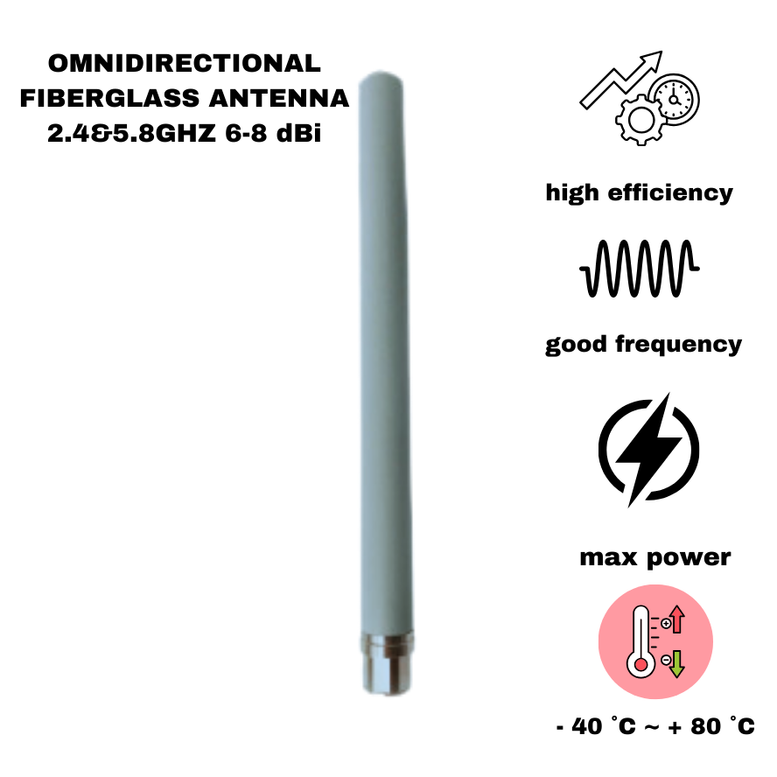

Model No.: Omnidirectional Outdoor Fiberglass Antenna
Frequency Range(MHz)：2400-2500MHz; 5150-5850MHz
V.S.W.R: ≤2.0
Gain: 6-8 dBi
Efficiency: ≈75% - 72%
Center frequency characteristic impedance (Ω)：50

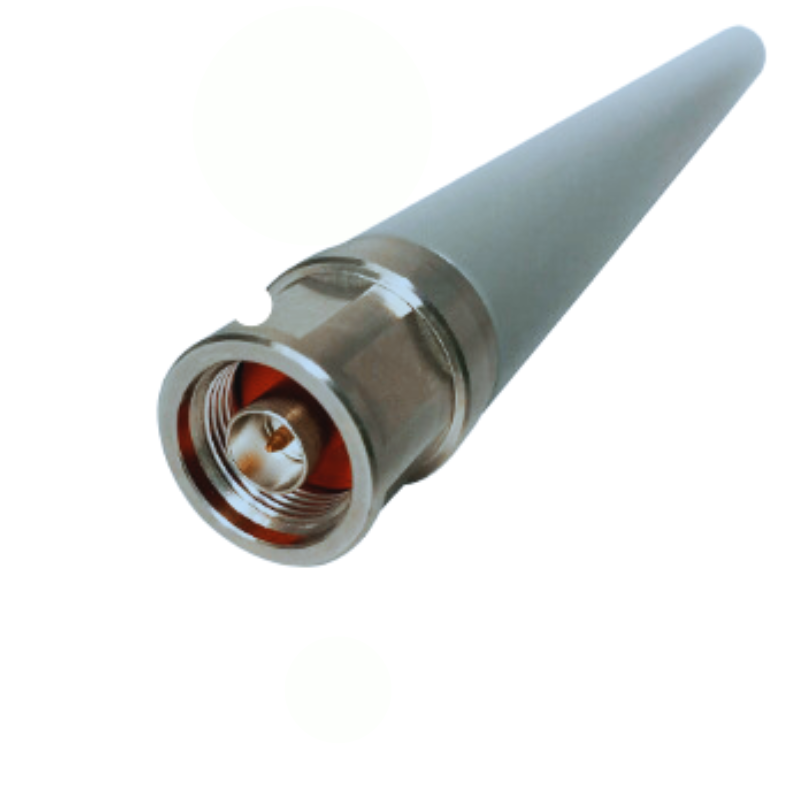

Connector Type：N
Main Technical Specifications
| Frequency Range(MHz) | 2400-2500MHz & 5150-5850MHz |
| Impedance(Ω) | 50 |
| Gain | 6- 8 |
| V.S.W.R | ≤ 2.0 |
| Connector Type | N Connector |
| Max. Power | 50 W |
product introduction for Outdoor Best Omnidirectional Fiberglass Antenna 2.4&5.8ghz 6-8dbi
Our WiFi dual-band fiberglass antenna works on 2.4-2.5GHz and 5.15-5.8GHz, which has great coverage and performance over Bluetooth, BLE, ZigBee and wireless LAN etc.The omnidirectional fiberglass antenna was made for good connectivity, whether you choose it for a short-range or long-range solution our WiFi dual-band external antenna has the gain at 5dBi as enough to get a solid fast signal.
Wi-Fi Dual-Band external SMA with N type connector antennas can be installed by simply twisting them into the existing antenna jacks of your router or network adapter, no reconfiguration or recalibration is necessary.With standard SMA mountings socket & connector,this compact size omni Wi-Fi booster adapter ensures wide compatibility around.
The mast of RF wifi antennas with SMA male/femail adapters are made by sturdy material.Which is designed wide to catch as much signals from different directions as possible.
Additionally, you can use this antenna as a LoRa fiberglass antenna, or as an LoRa WAN antennas to keep your long range IoT applications always connected. And that in both 2.4GHz band and 5.8Ghz band! The robust line of sight connectivity keeps burstiness at bay!
Various uses of Outdoor Best Omnidirectional Fiberglass Antenna 2.4&5.8ghz 6-8dbi
Our Outdoor Omnidirectional Fiberglass Antenna 2.4&5.8GHz 6-8dBi is suitable for any application requiring reliable wireless communication over long distance. The high efficiency and low profile coupled with dual-band performance make this antenna ideal for many demanding access point applications in wireless communications systems, white space or other U-NII2/U-NII3 bands (5.725 – 5.850 GHz), ISM applications.
Wireless LAN (WLAN)
Home and Office Networking: High performance Internet connection for routers, modem routers, access points and switches in homes and offices.
Campus Wi-Fi Systems: Outdoor weather-resistant Wi-Fi hotspots. For long range Wi-Fi links refer to the Building-to-Building solution.
Boat and Vessel Communication: Can be used on ships and boats for reliable communication with shore-based networks or other vessels in the 2.4GHz and 5.8GHz bands.
Offshore Operations: Ideal for offshore oil rigs and other maritime operations requiring stable wireless connectivity.
Tactical Communication Systems: Supports outdoor wireless communication in military or defense operations where reliable, secure, and long-range communication is critical.
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
What is the range of coverage for the 2.4GHz and 5.8GHz bands of this antenna?
Outdoor Omnidirectional Fiberglass Antenna provides reliable coverage for both 2.4GHz and 5.8GHz bands with a 6-8dBi gain, which allows it to cover a wide range of distances, depending on environmental factors. Under optimal conditions, it can provide coverage up to several kilometers in open space. The exact range will depend on factors like terrain, obstacles, and interference.
Yes, this antenna is compatible with a variety of wireless communication protocols including Wi-Fi, Bluetooth, ZigBee, and LoRa WAN. It is ideal for both Wi-Fi networks (2.4GHz and 5.8GHz) and IoT applications like smart city infrastructure, smart agriculture, and industrial IoT. Its versatility makes it suitable for a wide range of use cases, from home networking to industrial and long-range LoRa applications.
Yes, the Omnidirectional Fiberglass Antenna is designed for outdoor environments. Its fiberglass construction makes it highly durable and resistant to harsh weather conditions, including rain, snow, UV rays, and high winds. The robust build ensures long-lasting performance even in challenging environments, making it an excellent choice for outdoor installations.
This antenna is equipped with SMA and N-type connectors, making it compatible with a wide variety of devices such as wireless routers, access points, wireless LAN devices, IoT gateways, LoRaWAN devices, and Bluetooth/BLE devices. It can be used with both consumer-grade and industrial-grade equipment
Installing the Outdoor Omnidirectional Fiberglass Antenna is relatively straightforward. The antenna comes with versatile SMA and N-type connectors, allowing for easy attachment to most wireless devices. Its lightweight design and mounting options (typically pole or wall mounts) make it easy to position in optimal locations for coverage. Installation can be completed with basic tools, but for best results, it's recommended to follow the manufacturer's guidelines for proper alignment and installation.
