Our high performance GNSS Antenna for base station that covers comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou as well as L-Band correction service.
Frequency Range(MHz)：GPS L1/L2/L5/L-Band, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, BDS B1/B2/B3, QZSS L1/L2/L5/L6, RNSS L5, SBAS L1/L5
V.S.W.R: ≤2.0
Gain: 5/7dbi
Center frequency characteristic impedance (Ω)：50
Connector Type：TNC Female
Product Application：Networks
| Frequency Range(MHz) | GPS L1/L2/L5 |
| Impedance(Ω) | 50 |
| Gain(dBi) | 5/7 |
| V.S.W.R | 2.0 |
| Connector Type | TNC Female |
| Product Application | Networks |

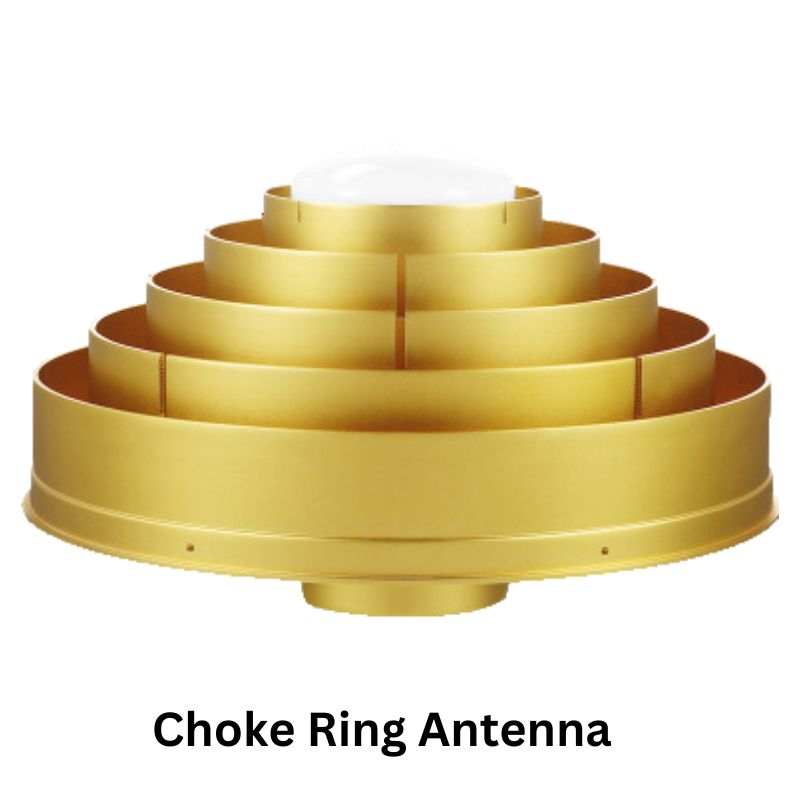

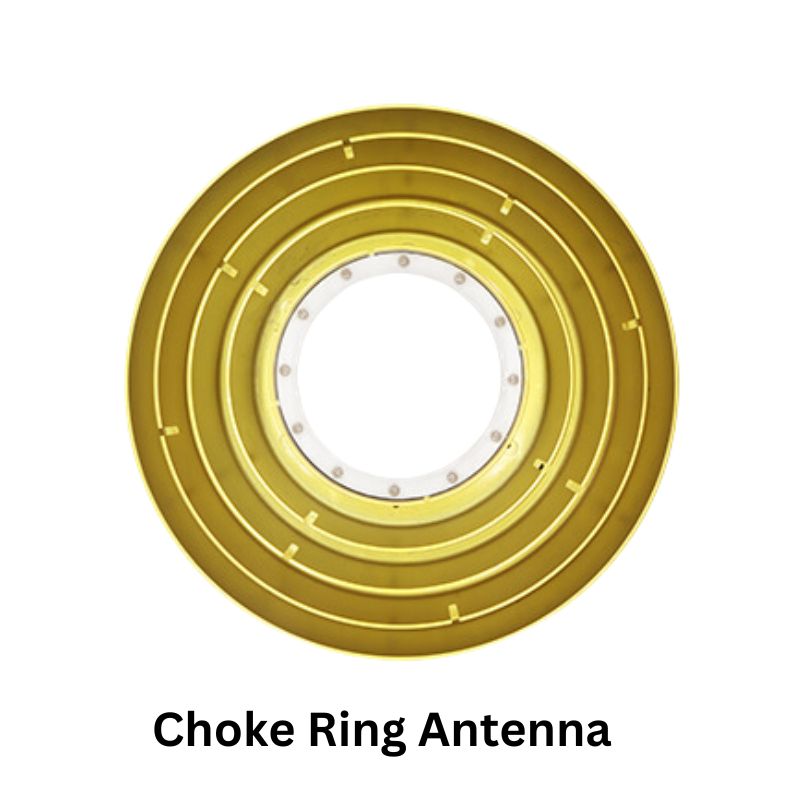

Introduction of 3d Choke Ring High Performance Multi-Constellation Antenna
Our high performance GNSS antenna for base station that covers comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou as well as L-Band correction service. It is a 3D choke ring antenna with strong multipath suppression performance, specifically designed for applications require absolute positioning accuracy and multi-constellation support.
we’re working with critical infrastructure, surveying, or any other application requiring the highest level of positioning precision, this GNSS antenna is designed to meet those needs with superior accuracy and performance.
Application Area of 3d Choke Ring High Performance Multi-Constellation Antenna
1. Geodetic Surveying : Used in precision geodetic measurements for land surveying, providing accurate positioning and navigation data for mapping and infrastructure development.
2. GPS/GLONASS/BeiDou/ Galileo Monitoring Stations : Employed in reference stations for global navigation satellite systems (GNSS), ensuring reliable, high-accuracy data for tracking and corrections.
3. Autonomous Vehicles : Integrated into the navigation systems of autonomous vehicles to support accurate, real-time positioning for safe and efficient operation.
4.Precision Agriculture : Utilized in agricultural applications requiring high-precision positioning for automated machinery, ensuring accurate planting, irrigation, and harvesting operations.
5.Telecommunication Networks : Deployed in telecommunication base stations for high-precision location tracking and synchronization of network elements in dense urban environments or remote areas.
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
1. What is the purpose of the choke ring design in this antenna?
The choke ring design significantly reduces multipath interference, which is the reflection of GNSS signals off surrounding surfaces, ensuring higher accuracy and reliability for precise positioning applications.
2. Which satellite systems does this antenna support?
This antenna supports multiple GNSS constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, providing robust multi-system support for global and regional positioning.
3. What applications is this antenna best suited for?
The antenna is ideal for high-precision applications such as geodetic surveying, GNSS reference stations, autonomous vehicles, precision agriculture, and telecommunications base stations where absolute positioning accuracy is required.
4. Is this antenna suitable for outdoor use in harsh conditions?
Yes, the high gain choke ring antenna is designed for outdoor use and is built to withstand various weather conditions, providing reliable performance in environments such as remote locations, urban canyons, and areas with challenging signal conditions.
