External magnetic mount multiband antenna designed for 5G , LTE, and cellular IoT (LTE-M, NB-IoT) applications.
Model No.: NB-IOT Antenna
Frequency Range(MHz): 470-510 & 690-960 & 1710-2690 Mhz
V.S.W.R: ≤2.0
Gain:2 dBi
Center frequency characteristic impedance (Ω)：50
Connector Type：SMA
Main Technical Specifications
| Frequency Range(MHz) | 880-960& 1710-1880 Mhz |
| Impedance(Ω) | 50 |
| Gain | 2 |
| V.S.W.R | ≤ 2.0 |
| Connector Type | SMA |
| Max. Power | 50 W |
Product Specifications

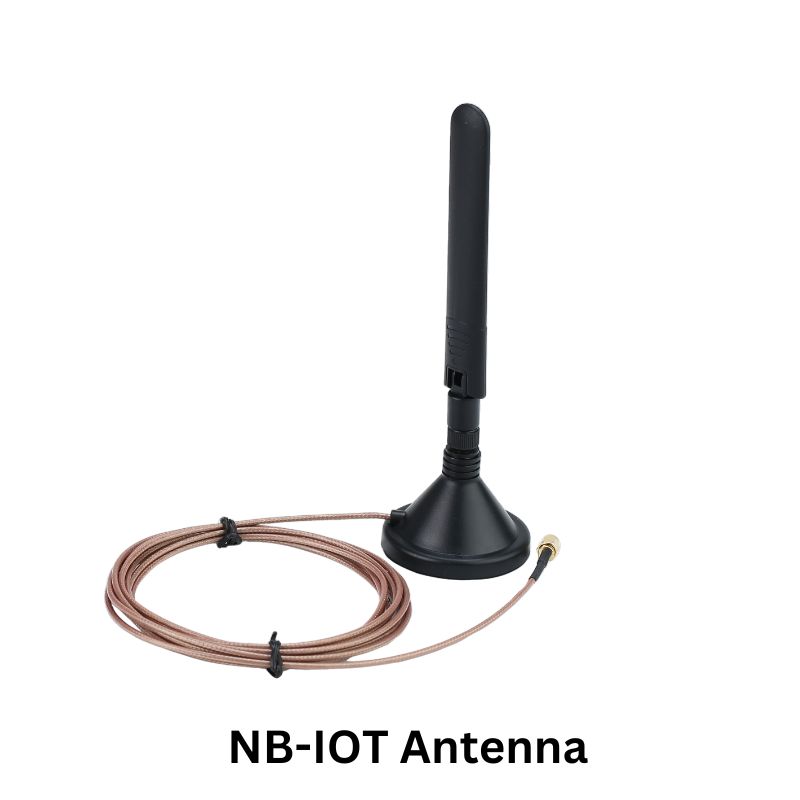

Introduction of NB-IOT Antenna
External magnetic mount multiband antenna designed for 5G , LTE, and cellular IoT (LTE-M, NB-IoT) applications. Provide a ground plane independent dipole antenna solution which mounts to ferrous metallic surfaces using the integrated magnetic base. The antenna terminates in an SMA plug (male pin) connector on a 1 meter RG-174/U coaxial cable.
Application Areas

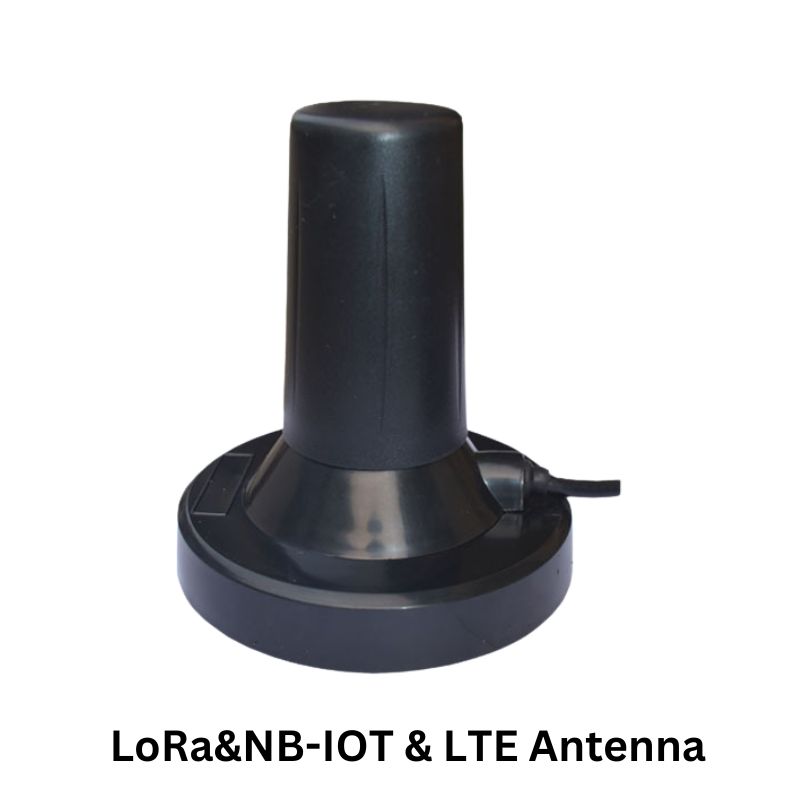

Application Areas of Lora Antenna & NB-IOT & LTE Antenna
Smart Cities: LoRa is used in smart city projects for applications such as smart lighting, smart waste management, and environmental monitoring.
Asset Tracking: For tracking goods, vehicles, and other valuable assets over long distances.
Agriculture: Precision farming for monitoring soil moisture, temperature, and humidity over wide rural areas.
Livestock Tracking: Tracking the location and condition of livestock in vast agricultural landscapes.
Purchase and Contact Information
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQ
NB-IOT Antenna FAQ
NB-IOT antennas in the 880-1880 MHz range can provide communication ranges from 0.8 to 2 kilometers in open rural areas. However, this range may decrease in urban environments due to signal interference and physical obstruction.
