Exploring the Role of 5G NR Antennas in Base Stations, Routers, and Mobile Devices: Requirements and Challenges

Introduction

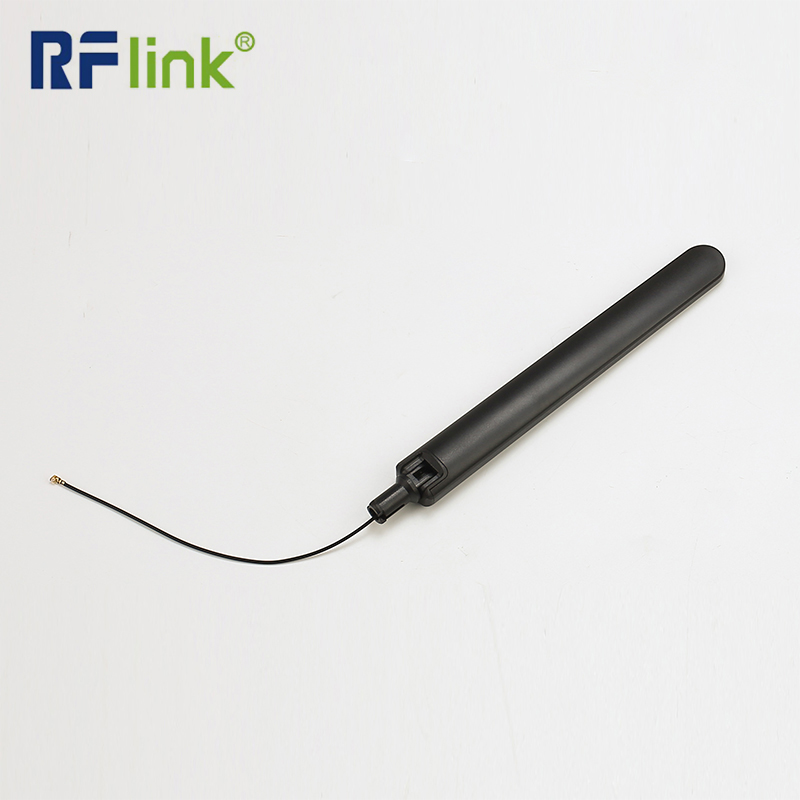

5G NR Antennas are high-performance antennas designed to meet the demands of fifth-generation mobile communication technology. They support higher frequencies and broader bandwidths, enabling faster data transmission and low-latency connections, significantly enhancing network speed and device connectivity. Utilizing advanced MIMO technology, these antennas improve signal coverage and network capacity, making them ideal for base stations, routers, and mobile devices, and driving the advancement and adoption of 5G networks.

The Use of 5G NR Antennas Across Different Application Scenarios: Base Stations, Routers, and Mobile Devices

The advent of 5G technology represents a significant leap forward in wireless communication, promising enhanced speeds, lower latency, and greater connectivity. At the heart of this transformative technology lies the 5G NR (New Radio) antenna, which is integral to achieving the ambitious goals of 5G networks. This article delves into the application of 5G NR Antennas in various contexts, including base stations, routers, and mobile devices, exploring their specific needs and associated challenges.

1. Base Stations

Application and Importance:

Base stations are crucial nodes in the 5G network infrastructure, responsible for transmitting and receiving signals to and from mobile devices. They act as intermediaries between the network core and end-users, ensuring seamless connectivity across vast areas.

Requirements:

High Capacity and Coverage: Base stations must handle a large number of simultaneous connections and provide extensive coverage. 5G NR antennas in base stations typically employ advanced MIMO (Multiple Input Multiple Output) technology to increase capacity and reliability.

Frequency Range: Base stations utilize both Sub-6 GHz frequencies and millimeter waves (24 GHz and above) to balance coverage and capacity. The antennas must be designed to operate efficiently across these diverse frequency bands.

Beamforming Capabilities: To optimize signal strength and coverage, base station antennas often incorporate beamforming technology, which directs the signal in specific directions to improve performance and reduce interference.

Challenges:

Deployment Density: The high frequency bands used in 5G can lead to reduced coverage areas. To overcome this, a denser network of base stations is required, which poses logistical and financial challenges.

Interference Management: The use of higher frequencies increases the potential for interference, necessitating advanced interference management and mitigation techniques to maintain signal quality.

2. Routers

Application and Importance:

5G routers are designed to provide high-speed internet access to homes and businesses. They serve as the gateway between the 5G network and local networks or individual devices, making them critical for ensuring a smooth internet experience.

Requirements:

High Throughput: To deliver the full benefits of 5G, routers need to support high data throughput rates. This requires 5G NR antennas capable of handling high frequencies and large bandwidths efficiently.

Low Latency: Routers must ensure minimal latency to support real-time applications such as gaming, video conferencing, and streaming. This necessitates antennas with fast response times and high performance.

Compact Design: Unlike base station antennas, 5G NR antennas in routers need to be compact and aesthetically pleasing for residential or commercial environments. This poses design constraints that must be addressed.

Challenges:

Signal Strength and Range: Ensuring strong and consistent signal strength within a building or across a business premises can be challenging. The placement of routers and the design of the antennas must address issues related to signal attenuation and obstacles.

Interference from Other Devices: Routers often operate in environments with multiple electronic devices that can cause interference. Antennas must be designed to mitigate such interference and maintain optimal performance.

3. Mobile Devices

Application and Importance:

Mobile devices, including smartphones and tablets, are the end-user equipment that connects to the 5G network. These devices rely on 5G NR antennas to provide high-speed internet access, enable new applications, and enhance user experiences.

Requirements:

Small Form Factor: The compact size of mobile devices necessitates that 5G NR antennas are small and lightweight while still providing robust performance. This requires advanced antenna design techniques to integrate high-performance antennas into the limited space of mobile devices.

Versatility: Mobile devices must support various frequencies and network configurations. 5G NR antennas in these devices need to be versatile, supporting multiple bands and standards to ensure compatibility and performance.

Power Efficiency: Since mobile devices rely on battery power, antennas must be designed to be power-efficient, minimizing power consumption while maintaining high performance.

Challenges:

Miniaturization: Integrating effective 5G NR antennas into the compact form factor of mobile devices poses significant design challenges. Engineers must balance performance with size constraints, ensuring that antennas deliver optimal performance without compromising device ergonomics.

Thermal Management: The high data rates and frequency operations can generate heat, which must be managed effectively to prevent overheating and ensure reliable operation. Designing antennas that can operate efficiently within the thermal constraints of mobile devices is a key challenge.

5G NR antennas play a pivotal role in enabling the high-speed, low-latency, and high-capacity benefits of 5G technology across different application scenarios. Base stations, routers, and mobile devices each have unique requirements and challenges that influence the design and deployment of these antennas. As 5G technology continues to evolve, addressing these requirements and overcoming the associated challenges will be crucial for maximizing the potential of 5G networks and ensuring a seamless, high-quality user experience.
