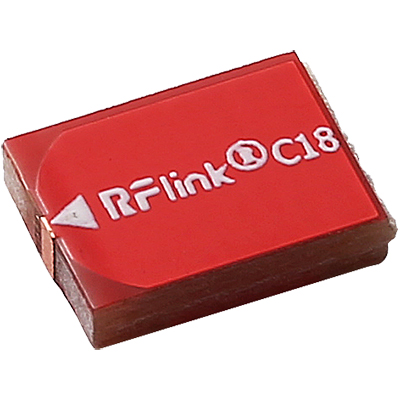

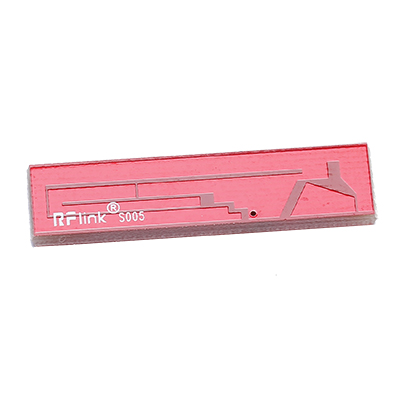

UWB-SMD-Chip Antenna is a high-performance, compact Antenna designed for Ultra-Wideband (UWB) communication systems.
Frequency Range(MHz):890-960/1710-2960
Center frequency characteristic impedance (Ω):50
Connector Type:SMT
Product Application:Networks
Main Technical Specifications
Frequency Range(MHz) | 890-960/1710-2960 |
Size | 42*10*3.0 |
Gain(dBi) | 3 |
V.S.W.R | 3 |
Connector Type | SMT |
Product Application | Networks |
Product Specifications
UWB SMD Chip Antenna Overview
UWB SMD Chip Antenna is a high-performance, compact antenna designed for Ultra-Wideband (UWB) communication systems. With its Surface-Mount Device (SMD) design, this antenna is ideal for integration into small electronic devices, providing precise and reliable performance across a wide frequency range. The UWB SMD Chip Antenna offers excellent signal quality and minimal interference, making it suitable for applications requiring high-speed data transmission and accurate distance measurement, such as in wireless communication, radar, and positioning systems.
Application Areas
UWB SMD Chip Antennaa Applications
1.Wireless Communication: Enhances signal quality and data transmission in UWB wireless communication systems, including short-range high-speed data transfer applications.
2.Radar Systems: Provides reliable performance in UWB radar systems for object detection and distance measurement, used in automotive and industrial applications.
3.Positioning Systems: Supports accurate positioning and location tracking in UWB-based positioning systems, ideal for indoor navigation and asset tracking.
4.Consumer Electronics: Integrates seamlessly into compact consumer electronics, such as wearables and smart devices, requiring high-performance UWB communication.
5.Medical Devices: Improves data transmission in medical devices using UWB technology, ensuring precise and reliable communication for health monitoring systems.
Purchase and Contact Information
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQ
FAQs for UWB SMD Chip Antenna
1. What is a UWB SMD Chip Antenna?
UWB SMD Chip Antenna is a compact antenna designed for Ultra-Wideband (UWB) communication, providing high-performance signal reception and transmission across a wide frequency range.
2. Where can I use the UWB SMD Chip Antenna?
UWB SMD Chip Antenna is used in wireless communication systems, radar applications, positioning systems, consumer electronics, and medical devices requiring UWB technology.
3. What are the benefits of using a UWB SMD Chip Antenna?
UWB SMD Chip Antenna offers excellent signal quality, high-speed data transmission, and minimal interference, making it ideal for precise communication and measurement applications.
4. Is the UWB SMD Chip Antenna suitable for compact devices?
Yes, its compact Surface-Mount Device (SMD) design allows for easy integration into small electronic devices while maintaining high performance.
5. How does the UWB SMD Chip Antenna support positioning systems?
The antenna provides accurate distance measurement and location tracking in UWB-based positioning systems, enhancing indoor navigation and asset management.
