Frequency Range(MHz)：2400-2500 & 5150-5825 MHz
Gain: 3/5dBi
Center frequency characteristic impedance (Ω)：50
Connector Type：SMA
Product Application：Networks

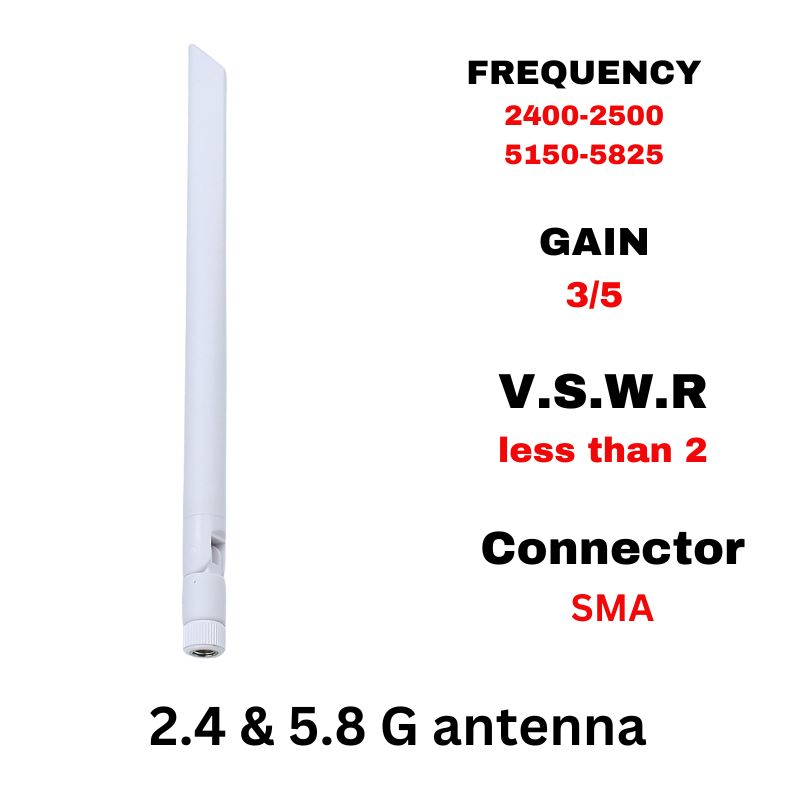

| Frequency Range(MHz) | 2400-2500 & 5150-5825 MHz |
| Impedance(Ω) | 50 |
| Gain(dBi) | 3/5 |
| V.S.W.R | ≤ 2.0 |
| Connector Type | SMA |
| Product Application | Networking |

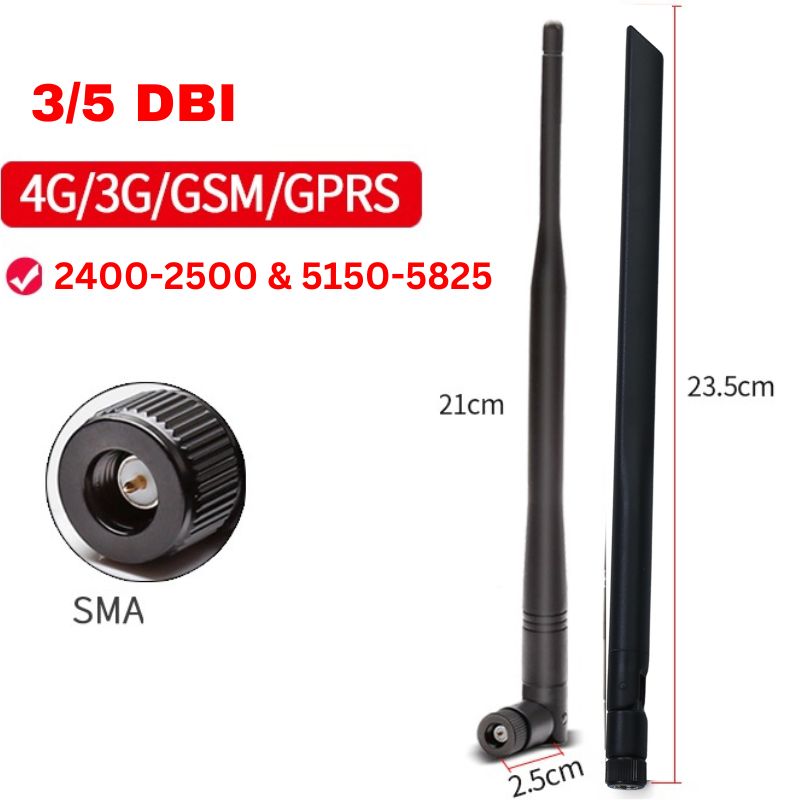

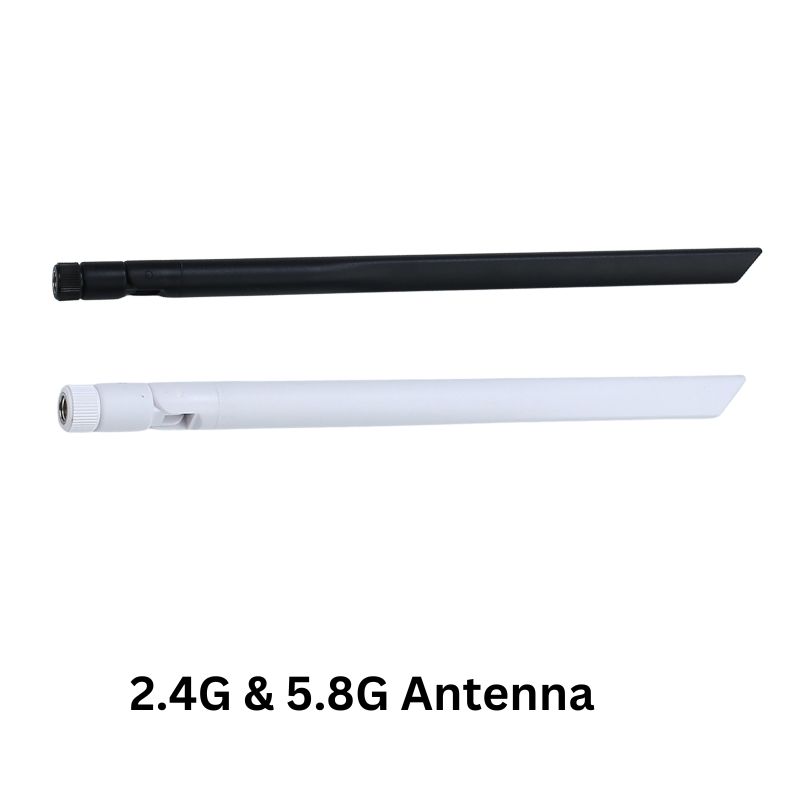

Introduction of 2.4 & 5.8G Antenna with SMA Connector
2.4GHz & 5.8GHz antenna with an SMA connector is a dual-band antenna designed to support both 2.4GHz and 5.8GHz wireless frequencies. It features an SMA (SubMiniature version A) connector, providing a secure and reliable connection for various devices like Wi-Fi routers, drones, and radio communication systems. This antenna enhances signal strength and performance, making it ideal for applications that require stable, high-frequency wireless transmission.
Application area of 2.4 & 5.8G Antenna with SMA Connector
1. Wi-Fi Networking : Used in routers and access points to improve dual-band wireless coverage (2.4GHz and 5.8GHz), ensuring better range and faster speeds.
2. Drone Systems : Enhances signal reception for FPV (First-Person View) drones, providing clear video feeds and reliable control over long distances.
3. Wireless Communication : Ideal for radio communication devices, supporting stable transmission across both 2.4GHz and 5.8GHz bands for improved signal integrity.
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
FAQ's 2.4 & 5.8 GHz antenna with an SMA connector
1. What is the difference between 2.4 GHz and 5.8 GHz bands?
The 2.4 GHz band offers better range and penetration through walls, making it ideal for longer distances and indoor use. However, it's more crowded with devices like Wi-Fi, Bluetooth, and microwaves, which can cause interference. The 5.8 GHz band is less crowded, offers faster speeds and lower latency, but has a shorter range and is more affected by obstacles like walls.
2. What is an SMA connector and why is it important?
SMA (SubMiniature version A) connector is a small, threaded connector used in RF (radio frequency) applications. It is commonly used for antennas, providing a secure and reliable connection between the antenna and the device. SMA connectors are known for their durability and are widely used in wireless communication systems like Wi-Fi routers, drones, and other RF equipment.
3. Can I use a 2.4/5.8 GHz antenna for both Wi-Fi and drones?
Yes, a dual-band 2.4/5.8 GHz antenna can be used for both Wi-Fi networks and drone systems that operate on these frequencies. Many drones, for instance, use the 2.4 GHz band for control signals and the 5.8 GHz band for video transmission. Ensure the antenna matches the specific requirements of your device to achieve optimal performance.
4. How do I choose the right antenna for my device?
When selecting an antenna, consider the frequency band (2.4 GHz and 5.8 GHz), the connector type (such as SMA), and the gain of the antenna (measured in dBi). Higher gain antennas provide a longer range but with a narrower beam, while lower gain antennas offer wider coverage but less range. Ensure that the antenna is compatible with your device’s connector type (e.g., SMA, RP-SMA) and that it supports the frequencies your device uses.
